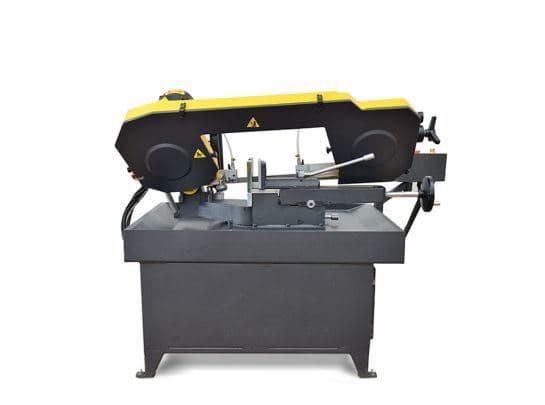

BMS-230 DG

Bandsawing Machine

Product Description

  Popular sawing machine, heavy duty. Favorable price / performance ratio. With adjustable cutting pressure and coolant pump with tank. Performed with electric-mechanical blade tension. Ideal for large and small production workshops. Drive with hardened and ground worm shaft. Saw exit by means switch. Pivoting control panel. Supply with fixed base.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 230
Flat Cutting Capacity mm 320 x 130
Square Cutting Capacity mm 230
-45 Round Cutting Capacity mm 180
-45° Flat Cutting Capacity mm 230 x 100
-45° Square Cutting Capacity mm 150
+45° Round Cutting Capacity mm 210
+45° Flat Cutting Capacity mm 230 x 160
+45° Square Cutting Capacity mm 180
+60° Round Cutting Capacity mm 120
+60° Flat Cutting Capacity mm 120 x 100
+60° Square Cutting Capacity mm 100
Main Drive Motor kW 1,0 - 1,3
Coolant Pump kW 0,12
Cutting Speeds m/min. 35 - 70
Band Dimensions mm 2730x27x0,9
Working Height mm 760
Weight kg 415
Length mm 1350
Width mm 700
Height mm 1300
