BMSO-460C

Bandsawing Machine

Product Description

Fully automatic Linear Way for cutting solid stocks,tubes and profiles of steel , cast-iron light and nonferrous material for cutting at only 90°. Complete steel fabricated. The rear jaw contains of a number of hardened rollers driven through a worm and wheel by an electric motor.The front vice consist of a number of free running rollers.A limit switch assemebled on top the vice stops the machine when the block is exhausted. Once the work piece is clamped between the rollers no further clamping needed. The work is fed through the vice to the bar stop which contains a micro-switch controlling the bar feed motor. A piece counter controls the number of the cuts.The machines stop automatically at the blade breakage. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. Bi-Metal sawblade and 1,2 meters infeed roller table are supplied as standart.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 460
Flat Cutting Capacity mm 470 x 460
Square Cutting Capacity mm 460
Main Drive Motor kW 4
Hydraulic Motor kW 0,55
Feed Motor kW 0,25
Coolant Pump kW 0,12

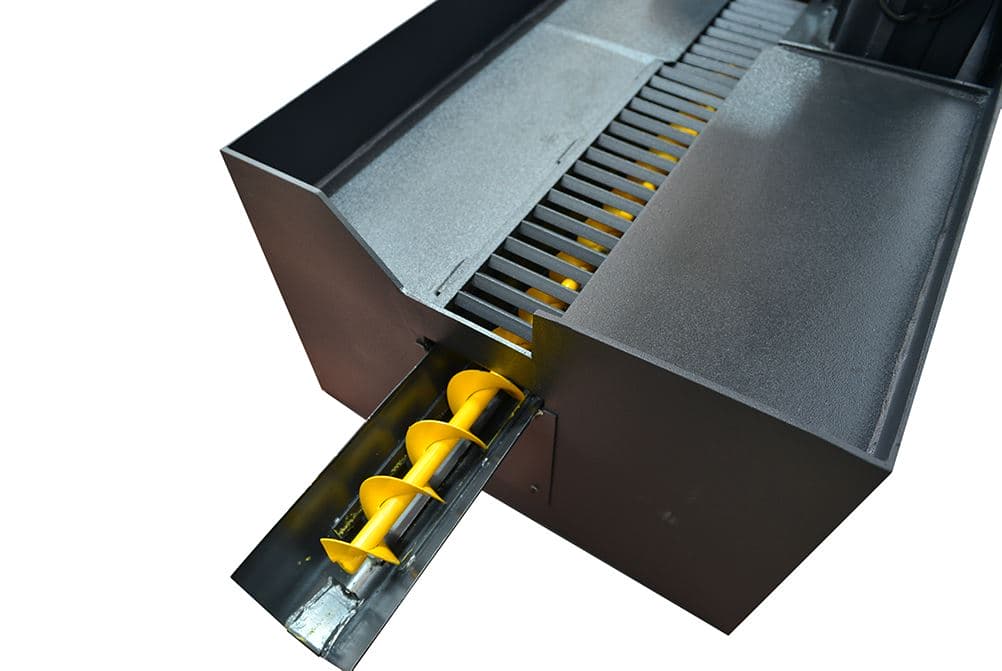

Chip Conveyor Motor kW 0,25
Cutting Speeds m/min. 20 - 100
Band Dimensions mm 5200x41x1,3
Working Height mm 590
Weight kg 1655
Lenght mm 3100
Width mm 1000
Height mm 1800
