BMSY-1110C

Bandsawing Machine

Product Description

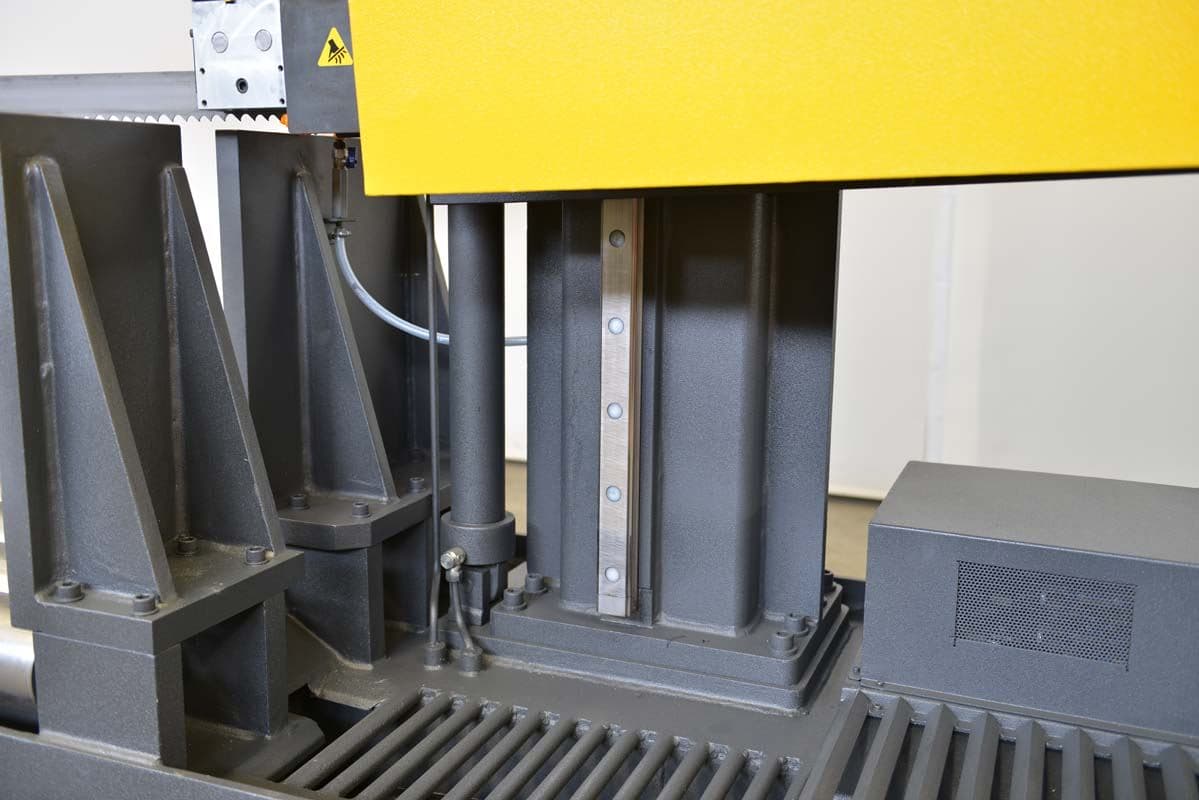

Beka-Mak Twin-Pillar horizontal bandsaws have been designed to give a low cost compact and rugged machines.The bow is constructed in heavy gauge steel and mounted two chromed and grinding pillars offer a strong rigid sawframe, providing a high degree of accurancy when cutting. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material.Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload and no-volt release are standart feature and the machines automatically switch off at the end of the cut and sawframe is lifted hydraulically up to the adjusted level.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 1110
Flat Cutting Capacity mm 1110x1110
Square Cutting Capacity mm 1110
Main Drive Motor kW 11
Hydraulic Motor kW 4
Coolant Pump kW 0,20
Chip Conveyor Motor kW 0,25
Cutting Speeds m/min. 20 - 100
Band Dimensions mm 10500x67x1,6
Working Height mm 545
Weight kg 10440
Length mm 4800
Width mm 1500
Height mm 2975
