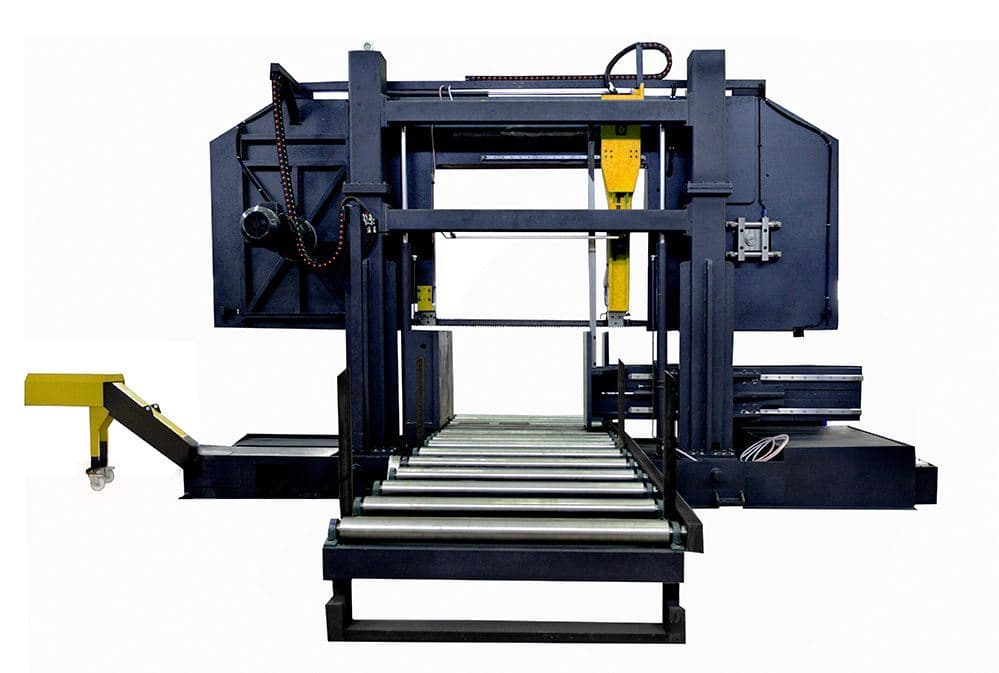

BMSY 1515C

Bandsawing Machine

Product Description

PRODUCT DESCRIPTION

~~Beka-Mak Twin-Pillar horizontal bandsaws have been designed to give a low cost compact and rugged machines.The bow is constructed in heavy gauge steel and mounted two chromed and grinding pillars offer a strong rigid sawframe, providing a high degree of accurancy when cutting. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material.Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload and no-volt release are standart feature and the machines automatically switch off at the end of the cut and sawframe is lifted hydraulically up to the adjusted level.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 1500
Flat Cutting Capacity mm 1510x1500
Square Cutting Capacity mm 1500
Main Drive Motor Kw 15
Hydraulic Motor Kw 7.5
Coolant Pump Kw 2 x 0.20
Chip Conveyor Motor Kw 0.25
Cutting Speed mm 10 - 70
Band Dimensions mm 13300x80x1.6
Working Height mm 545
Weight kg 21645
Length 6000
Width mm 2400
Height mm 3850
