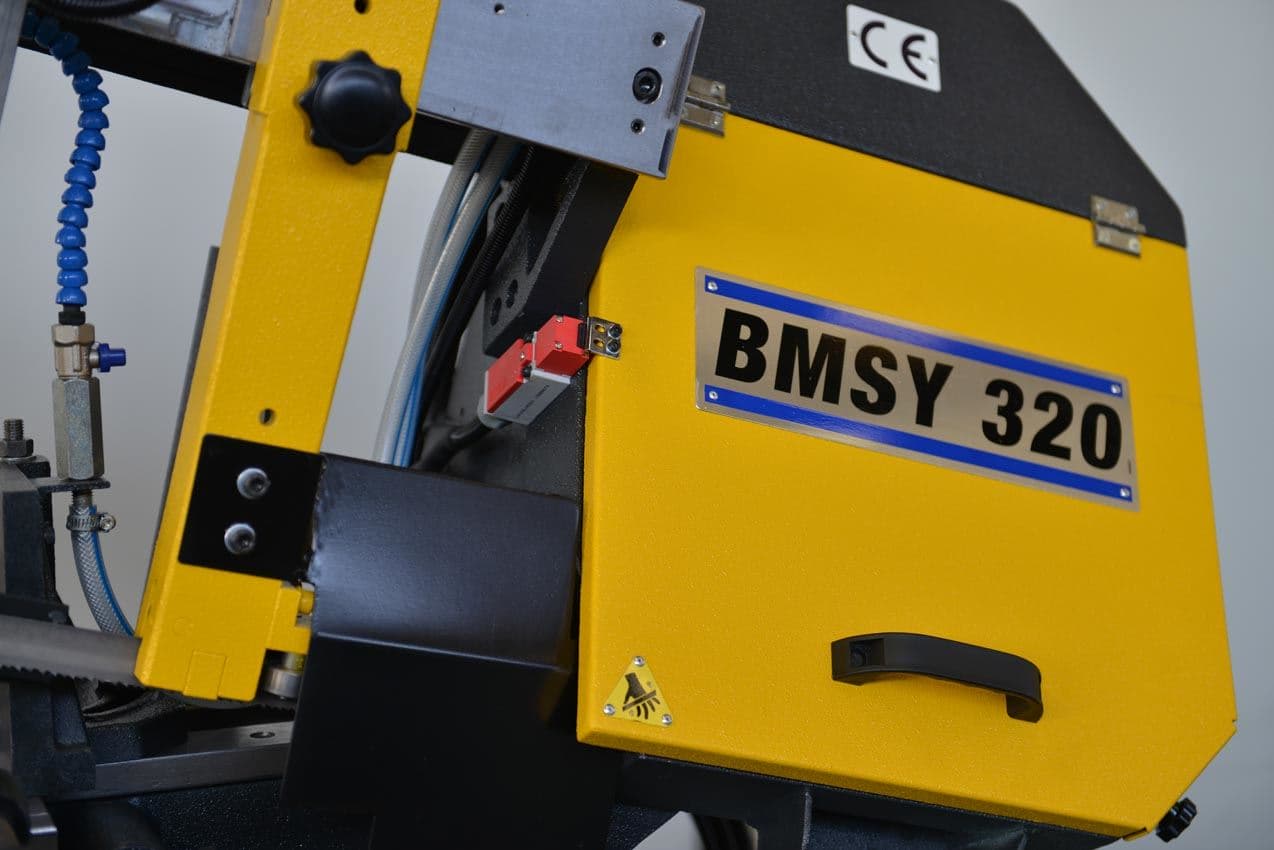

BMSY-320

Bandsawing Machine

Product Description

Our semi automatic horizontal bandsaw machine is suitable to cut full materials as pipe, steel cating, steel etc. By turning the vice jaws 0-45 degree cut can be processed. On semi automatic models, after finishing the cut, sawframe is lifted hydraulically up to the adjusted level. After finishing the cut, sawframe is lifted hydraulically up to the adjusted level. Metal sawblade and material roller table are supplied as standart.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 320
Flat Cutting Capacity mm 440 x 220
Square Cutting Capacity mm 320
+45° Round Cutting Capacity mm 280
+45° Flat Cutting Capacity mm 280 x 200
+45° Square Cutting Capacity mm 260
Main Drive Motor kW 1,5
Hydraulic Motor kW 0,37
Coolant Pump kW 0,12
Cutting Speeds m/min. 20 - 100
Band Dimensions mm 3660x27x0,9
Working Height mm 640
Weight kg 670
Lenght mm 1900
Width mm 850
Height mm 1300
