BMSY-320G

Bandsawing Machine

Product Description

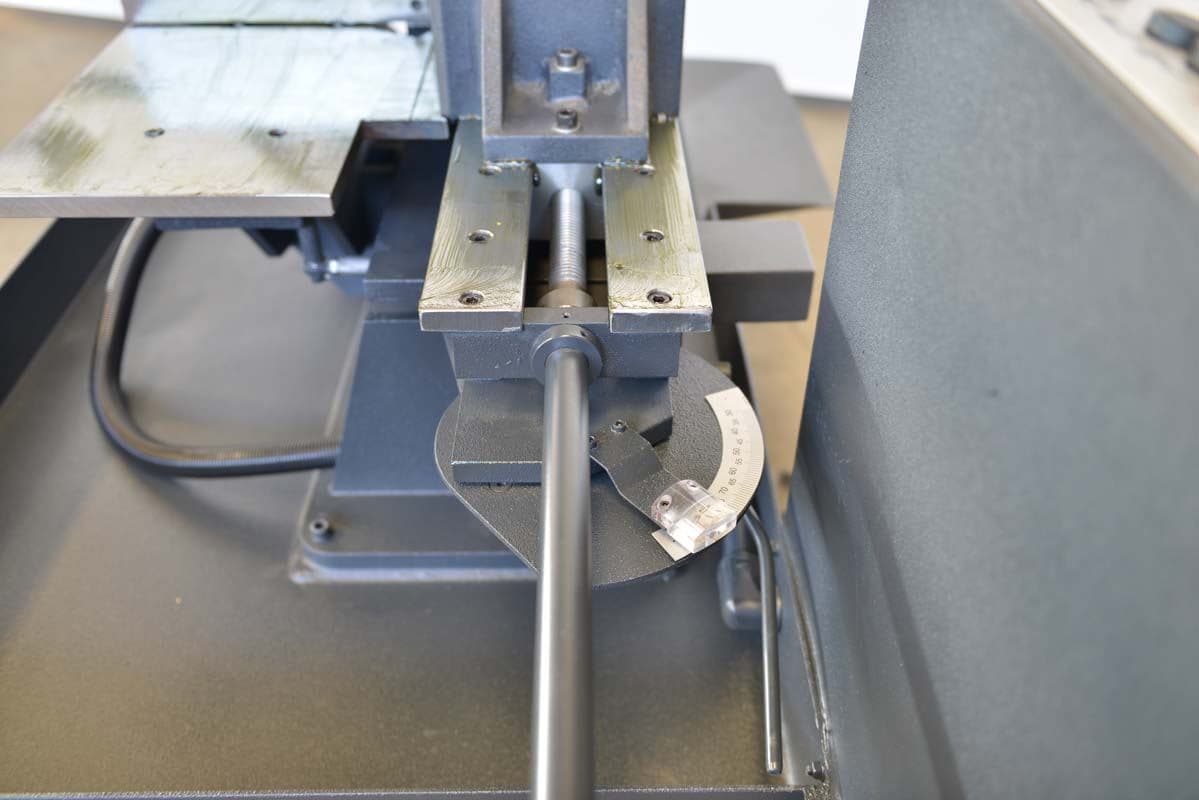

280G,320G and 320GL are durable and stably laid out for universal separetion from full materials,pipes and profiles.A fast and precise mitre adjustment is characteristic within the range of 90 deg to 30 deg.The sawing property is situated in-line and becomes manuel strained in the angle of 90 deg. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material.Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload and no-volt release are standart feature and the machines automatically switch off at the end of the cut. On semi automatic models, after finishing the cut, sawframe is lifted hydraulically up to the adjusted level. Bi-Metal sawblade and 1,2 meter infeed roller table are supplied as standart.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 320
Flat Cutting Capacity mm 350 x 320
Square Cutting Capacity mm 320
+75° Round Cutting Capacity mm 320
+75° Flat Cutting Capacity mm 350 x 200
+75° Square Cutting Capacity mm 300
+60° Round Cutting Capacity mm 300
+60° Flat Cutting Capacity mm 300 x 200
+60° Square Cutting Capacity mm 250
+45° Round Cutting Capacity mm 260
+45° Flat Cutting Capacity mm 250 x 180
+45° Square Cutting Capacity mm 180
+30° Round Cutting Capacity mm 160
+30° Flat Cutting Capacity mm 150 x 150
+30° Square Cutting Capacity mm 150
Main Drive Motor kW 1,5
Hydraulic Motor kW 0,37
Coolant Pump kW 0,12
Cutting Speeds m/min. 20 - 100
Band Dimensions mm 3660x27x0,9
Working Height mm 740
Weight kg 1015
Length mm 1900
Width mm 1200
Height mm 1350
