BMSY-325CGH

Bandsawing Machine

Product Description

Horizantal Bandsaws with linear guideways are ideal for mitre cuts with different quantities . With movement of bow it’s possible to cut between 90° and +30°. Cutting capacity at 90° is 320mm x 450mm for flat type and 325 mm for round shaped materials. With auto height adjustment sensors bow approachs the material with fast speed and hydraulic cutting control allows the bow go up over the material after the cut. All this process is controlled by digital counter on control panel and total duration for one cut decreases. Fixing the bow at any angle is controlled by hydraulical brake system and you can control it by another digital counter placed on main body of machine.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 325
Flat Cutting Capacity mm 400 x 320
Square Cutting Capacity mm 320
+30° Round Cutting Capacity mm 325
+30° Flat Cutting Capacity mm 360 x 320
+30° Square Cutting Capacity mm 320
+45° Round Cutting Capacity mm 305
+45° Flat Cutting Capacity mm 270 x 320
+45° Square Cutting Capacity mm 270
+60° Round Cutting Capacity mm 190
+60° Flat Cutting Capacity mm 180 x 240
+60° Square Cutting Capacity mm 180
Main Drive Motor kW 2,2
Hydraulic Motor kW 0,55
Coolant Pump kW 0,12
Cutting Speeds m/min. 20 - 100

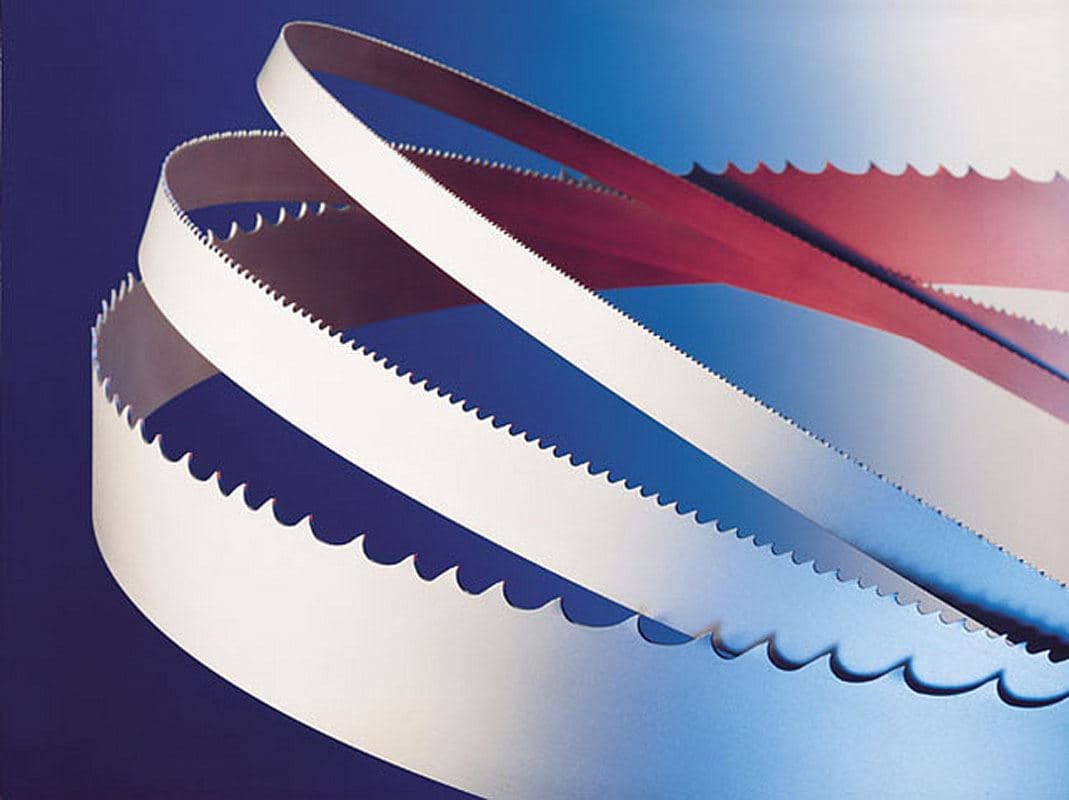

Band Dimensions mm 4380x34x1,1
Working Height mm 640
Weight kg 1185
Length mm 2100
Width mm 800
Height mm 1600
