Double Sıded Mıter Cuttıng Band Saws
BMSY-360DGH ECO
Product Description
Technical Details
Optional Features
Standard Features
Video
Double sided miter semi automatic bandsaw machine
Cutting Capacity
0°
360 mm
510 x 360 mm
360 mm
+30°
360 mm
440 x 360 mm
360 mm
+45°
360 mm
390 x 360 mm
360 mm
+60°
200 mm
200 x 360 mm
200 mm
-30°
360 mm
440 x 360 mm
360 mm
-45°
360 mm
390 x 360 mm
360 mm
-60°
260 mm
260 x 360 mm
260 mm
Main Drive Motor
3 kW
Hydraulic Motor
0,37 kW
Coolant Pump
0,12 kW
Cutting Speeds
20 - 100 m/min.
Band Dimensions
4800x34x1,1 mm
Working Height
860 mm
0,25 kW
Weight
1450 kg
Length
2650 mm
Width
1210 mm
Height
1870 mm

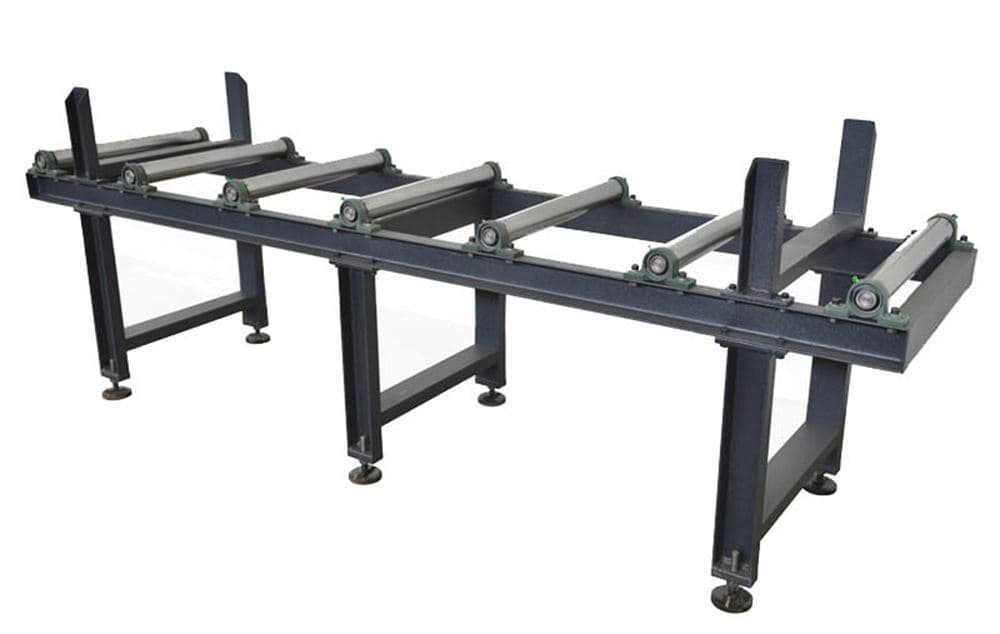

3 Mt Material Roller Table
3 Mt Material Roller Table
ILC Microspray Device
Standard Features
Inverter
Hydromechnic Blade Tension
Hydraulic Vice
Security Switch
Control Panel
Movable Arm/Vice
Coolant Pump
Heavy Duty Gearbox
Saw Blade 34
Saw Blade Brash
