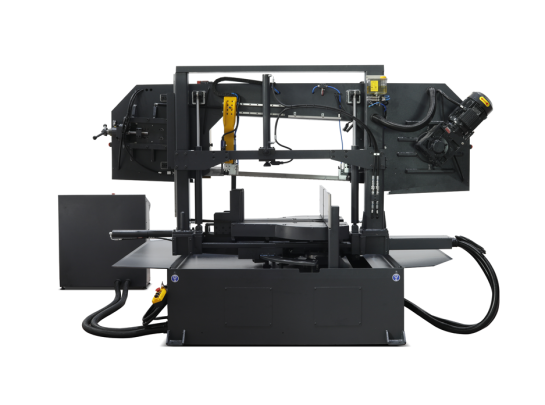

BMSY-440CDGH

Bandsawing Machine

Product Description

Capacity of the machine is 440/640 and projected for fast cuttings straight or with angle . Sensetivity of the machine lets cutting with percentage angles. BMSY 440CDGH has automatic control system and open to future developments. Rollers on the table are designed for easy movement of the materials on machine. Hydraulic equipment on fixed and moveable guide arms controls cutting spped for a more smooh cut. Blade is under control mechanically switch system. Design of the machine and movement of the upper body and guide arms controlled by sensitive lineer guides supply the operator an easier use.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 440
Flat Cutting Capacity mm 640 x 440
Square Cutting Capacity mm 440
+30° Round Cutting Capacity mm 440
+30° Flat Cutting Capacity mm 510 x 440
+30° Square Cutting Capacity mm 440
+45° Round Cutting Capacity mm 440
+45° Flat Cutting Capacity mm 400 x 440
+45° Square Cutting Capacity mm 400
+60° Round Cutting Capacity mm 250
+60° Flat Cutting Capacity mm 250 x 440
+60° Square Cutting Capacity mm 250
-30° Round Cutting Capacity mm 440
-30° Flat Cutting Capacity mm 510 x 440
-30° Square Cutting Capacity mm 440
-45 Round Cutting Capacity mm 390
-45° Flat Cutting Capacity mm 390 x 440
-45° Square Cutting Capacity mm 390
Main Drive Motor kW 4
Hydraulic Motor kW 1,1
Coolant Pump kW 0,12
Cutting Speeds mm 20 - 100
Band Dimensions mm 5200x41x1,3
Working Height mm 800
Weight kg 1780
Length mm 3100
Width mm 1200
Height mm 1910
