BMSY-440CGH

Bandsawing Machine

Product Description

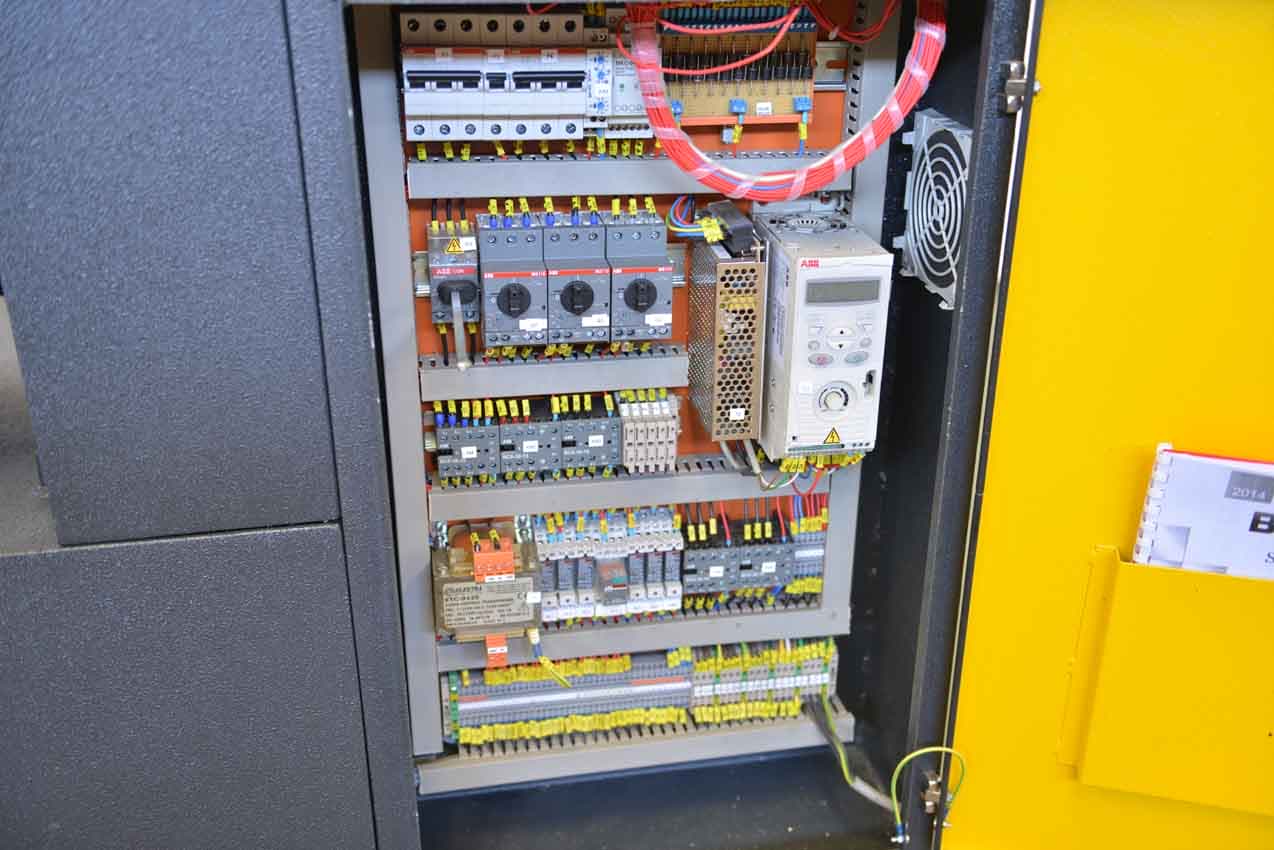

Horizantal Bandsaws with linear guideways are ideal for mitre cuts with different quantities . With movement of bow it’s possible to cut between 90° and +30°. Cutting capacity at 90° is 440mm x 700mm for flat type and 440 mm for round shaped materials. With auto height adjustment sensors bow approachs the material with fast speed and hydraulic cutting control allows the bow go up over the material after the cut. All this process is controlled by digital counter on control panel and total duration for one cut decreases. Fixing the bow at any angle is controlled by hydraulical brake system and you can control it by another digital counter placed on main body of machine



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 450
Flat Cutting Capacity mm 695 x 425
Square Cutting Capacity mm 425
+30° Round Cutting Capacity mm 450
+30° Flat Cutting Capacity mm 560 x 425
+30° Square Cutting Capacity mm 425
+45° Round Cutting Capacity mm 430
+45° Flat Cutting Capacity mm 430x 425
+45° Square Cutting Capacity mm 425
+60° Round Cutting Capacity mm 320
+60° Flat Cutting Capacity mm 260 x 425
+60° Square Cutting Capacity mm 290
Main Drive Motor kW 4
Hydraulic Motor kW 0,55
Coolant Pump kW 0,12
Cutting Speeds m/min. 20 - 100
Band Dimensions mm 5400x41x1,3
Working Height mm 690
Weight kg 1630
Length mm 2850
Width mm 780
Height mm 1800
