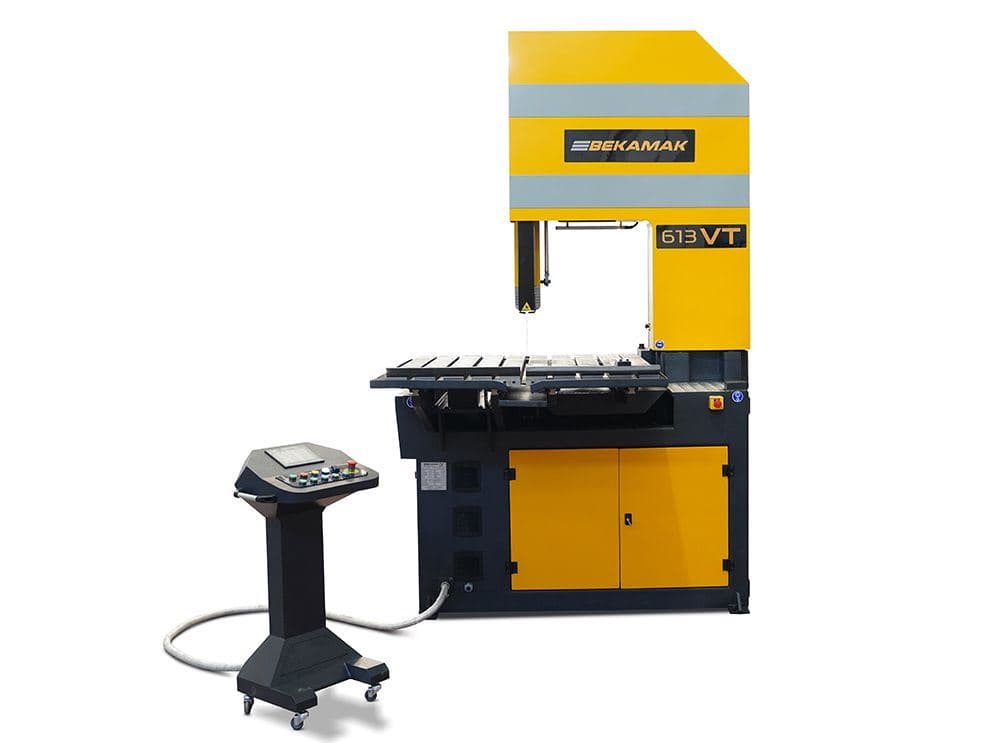

BMSY-613VT
Optional Features
- Chip Conveyor
Standard Features
- Hydraulic Blade Tension
- Servo Cutting
- PLC Control Panel
- Heavy Duty Gearbox
Product Description
By the long cut working method, the vertical Bekamak bandsawing machine allows to cut square or flat materials with different sizes of cross section from rolled blocks or rolled plates.
PARAMETER | UNIT | UNIT |
---|---|---|
Square Cutting Capacity | mm | 600 |
Flat Cutting Capacity | mm | 700 x 600 |
Max. Cutting Length | mm | 1300 |
Main Motor | kW | 7,5 |
Hydraulic Motor | kW | 1,1 |
Coolant Motor | kW | 0.2 |
Chip Conveyor Motor | kW | 0,25 |
Servo Feeding Speed | mm/dk | 0,1-999 |
Servo Motor | kW | 1,5 |
Cutting Speed | m/min | 15-120 |
Band Dimension | mm | 6385 x 54 x 1,6 |
Working Height | mm | 1314 |
Weight | Kg | 4470 kg |
Chip Conveyor Weigh | Kg | 4720 kg |
Lenght | mm | 3000 |
Width | mm | 1950 |
Height | mm | 3100 |
