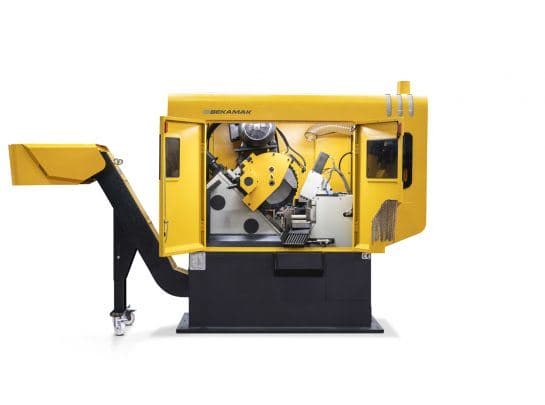

BMDO-150XS


Mass production in continuous operation is done by BMDO 150 XS when producing cut-off pieces of steel and non-ferrous metals with a material cross-section up to a diameter of 150 mm. BMDO 150 XS is designed to be used with TCT circular saw blade in order to cut solid bars in high speed and excellent precise. It is also suitable for HSS blades to cut tubes. With the Standard 800mm stroke servo feeding and 6 meters automatic loader. BMDO 150 XS is perfect for large-scale production of solid bars.
Cutting Capacity 20 - 160 mm - 40 - 110 mm
Main Drive Motor 15 kW
Hydraulic Motor 2,2 kW
Coolant Motor 0,2 kW
Feeder Servo Motor 2 kW
Head Servo Motor 2 kW
Chip Conveyor Motor 0,25 kW
Maximum Stock Table Loading Capacity, Round Bars (L x D) 6.000 x 160 mm x 10 bars
Incline Loader Dimensions (L x W x H) 6280 x 2170 x 1600 mm
Blade OD x T x t Ø460 x T2,7 x 2,27t mm
Bore Dimension 40 mm
Pin Holes 2/16/80
Saw Blade Speed 40-280 m/min
Power Supply Voltage AC400V, 3 PH, 50/60 HZ
Power Requirement 21,65 kW
Air Pressure 5 bar / 0,5 mPa mPa
Air Flow Rate 245 lt/dk
Hydraulic Tank Capacity 70 lt
Oil Mist Tank Capacity 1,5 lt
Index Mechanism Servo Sürücü
Material Index AC Servo Motor & Vidalı Mil
Stroke 800 mm
Feeding Length 10-9999 mm
Feeding Speed 0-750 mm/s
Minimumend Trimming Length 10 mm
Remnant Length 60 mm
Table Height 900 mm
Machine Dimensions (W x L x H) 3400 x 2660 x 2680 mm
Machine Weight 3680  kg
