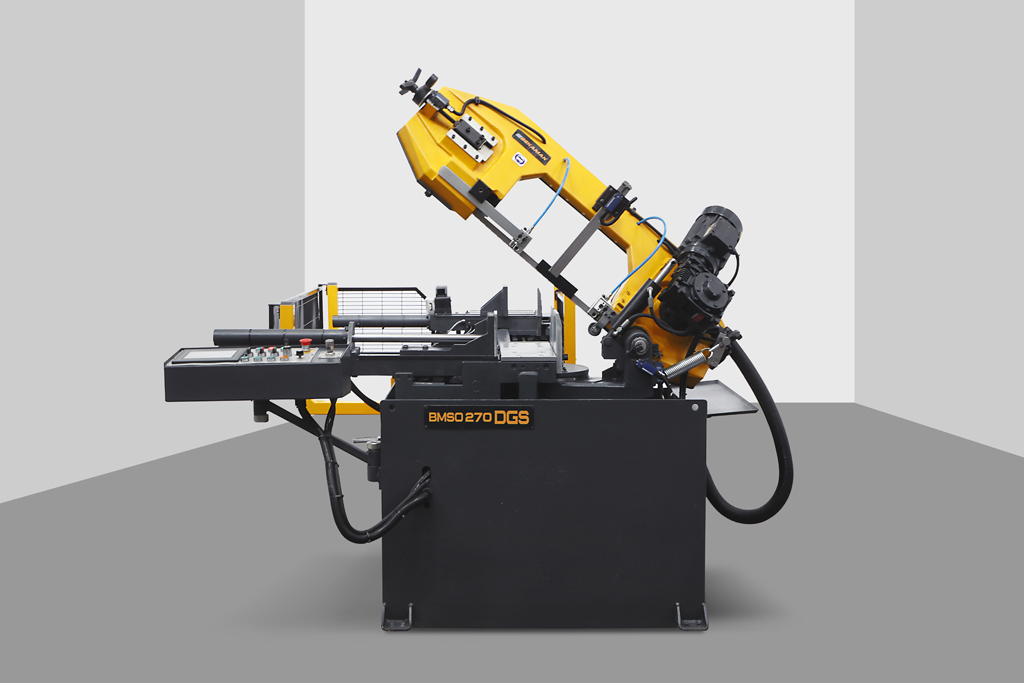

BMSO-270DGS

BMSO-270DGS

DGS model is the ideal model for mass production of solid material, tube and profile. Angular cutting is available between -45°/+60° degrees. Servo feeding system with bal screw reduces cutting tolerances to zero error marning. User friendly color touch screen PLC control panel allows to save 1 cutting program that can have 10 cutting steps.
Cutting Capacity 0° 270 mm 340 x 240 mm 270 mm
+30° 270 mm 300 x 150 mm 270 mm
+45° 230 mm 230 x 150 mm 170 mm
+60° 140 mm 150 x 90 mm 90 mm
-30° 260 mm 270 x 140 mm 220 mm
-45° 190 mm 200 x 100 mm 160 mm
Main Drive Motor 1,5 kW
Hydraulic Motor 1,1 kW
Coolant Motor 0,12 kW
Feeding Motor 0,37 kW
Single Stroke 1000 mm
Blade Speed 15 - 120 m/min.
Blade Dimensions 3160 x 27 x 0,9 mm
Working Height 845 mm
Weight 920 kg
Length 2400 mm
Width 1900 mm
Height 1600 mm
