Bandsaw Machine

Bandsawing Machine

Product Description

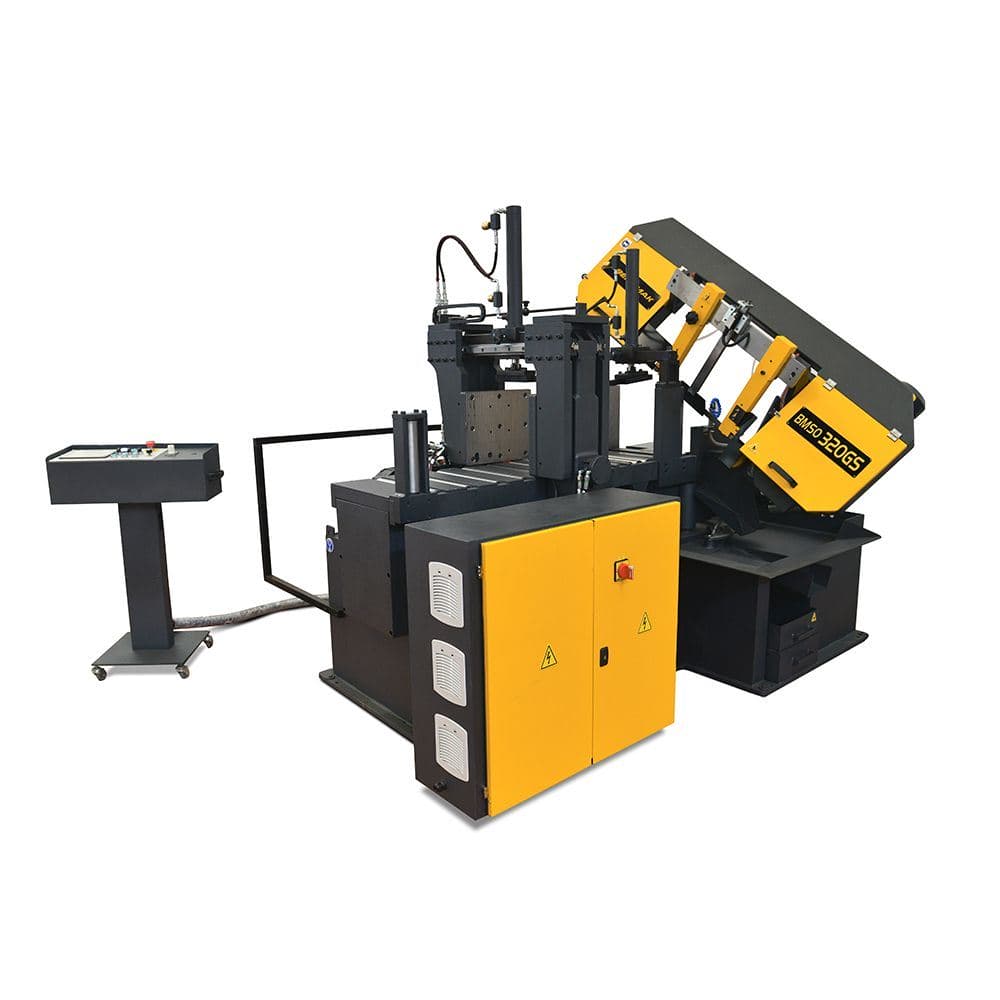

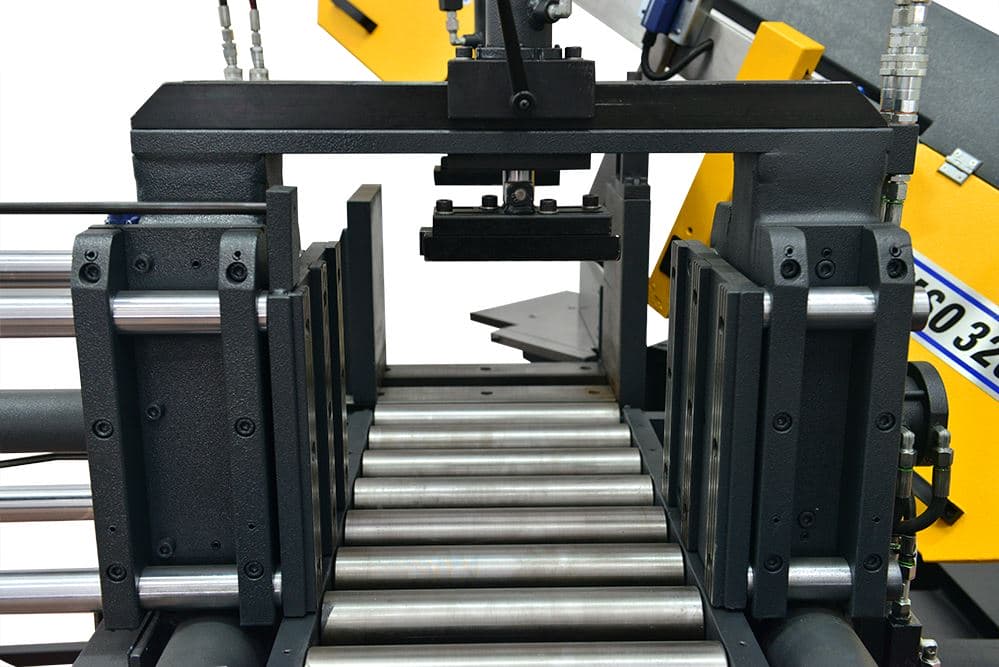

GS modei is the ideal model for mass production and bundle cutting of solid material, tube and profile. Angular cutting is available between 90-30° degrees. Servo feeding system with bal screw reduces cutting tolerances to zero error marning. Omron brand user friendly color touch screen PLC control panel allows to save 30 different cutting programsthat each can have 50 cutting steps. Hydraulic top clamping and hexagonal vices are also available for bundle cutting.



Technical Details



PARAMETER UNIT UNIT
Round Cutting Capacity mm 320
Flat Cutting Capacity mm 350 x 320
Square Cutting Capacity mm 320
30° Round Cutting Capacity mm 300
30° Flat Cutting Capacity mm 300 x 200
30° Square Cutting Capacity mm 250
45° Round Cutting Capacity mm 260
45° Flat Cutting Capacity mm 250 x 180
45° Square Cutting Capacity mm 180
60° Round Cutting Capacity mm 160
60° Flat Cutting Capacity mm 150 x 150
60° Square Cutting Capacity mm 150
Main Drive Motor kW 2,2
Hydraulic Motor kW 1,1
Coolant Pump kW 0,12
Servo Engine kW 1
Cutting Speeds m/min. 20 - 100
Band Dimensions mm 3660x27x0,9
Working Height mm 740
Weight kg 2310
Lenght mm 2120
Width mm 2100
Height mm 1810
