BMSO-320E
Optional Features
Standard Features
- 1,2 mt Roller Table
- Saw Blade Brush
- Heavy Duty Gearbox
- Hydraulıc Vıce
- Hydromechnic Blade Tension
- Security Switch
- Inverter
- Control Panel
- Mechanic Top Clamping
- Coolant Pump
- Height Adjustment Switch
- Saw Blade 27
Product Description

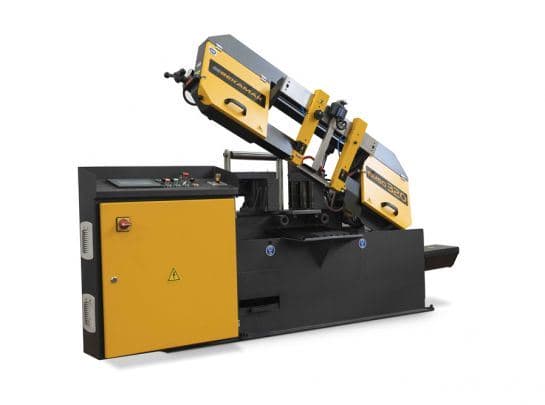

Our BMSO 320E model is a straight cutting machine that can cut automatically without a length stop thanks to its PLC controlled encoder. BMSO 320E, which can automatically cut different lengths with a single button, is a suitable model for your multi-piece cuts.
Technical Details
| PARAMETER | UNIT | UNIT |
|---|---|---|
| Round Cutting Capacity | mm | 320 |
| Flat Cutting Capacity | mm | 320 X 300 |
| Square Cutting Capacity | mm | 300 |
| Main Drive Motor | kW | 2,2 |
| Hydraulic Motor | kW | 0,37 |
| Feed Motor | kW | 0,25 |
| Coolant Pump | kW | 0,12 |
| Coolant Pump | kW | 0,12 |
| Cutting Speeds | m/min. | 20 - 100 |
| Band Dimensions | mm | 3660X27X0,9 |
| Working Height | mm | 640 |
| Weight | kg | 770 |
| Lenght | mm | 1900 |
| Width | mm | 850 |
| Height | mm | 1300 |
