Index
Mıter Auto Feed Nc Bandsaws
BMSO-350GA
Product Description
Technical Details
Optional Features
Standard Features
Video
Cutting Capacity
0°
350 mm
400 x 350 mm
350 mm
+30°
320 mm
400 x 350 mm
350 mm
+45°
320 mm
290 x 300 mm
270 mm
Main Drive Motor
2,2 kW
Hydraulic Motor
0,37 kW
Coolant Pump
0,12 kW
Feed Motor
0,25 kW
Cutting Seeds
20-100 m/min
Band Dimensions
4160x34x1,1 mm
Working Height
760 mm
Weight
1050 kg
Length
2450 mm
Width
920 mm
Height
2020 mm
ILC Microspray Device
Chip Conveyor
3 Mt Material Roller Table
Standard Features
1,2 mt Roller Table
Saw Blade Brush
Heavy Duty Gearbox

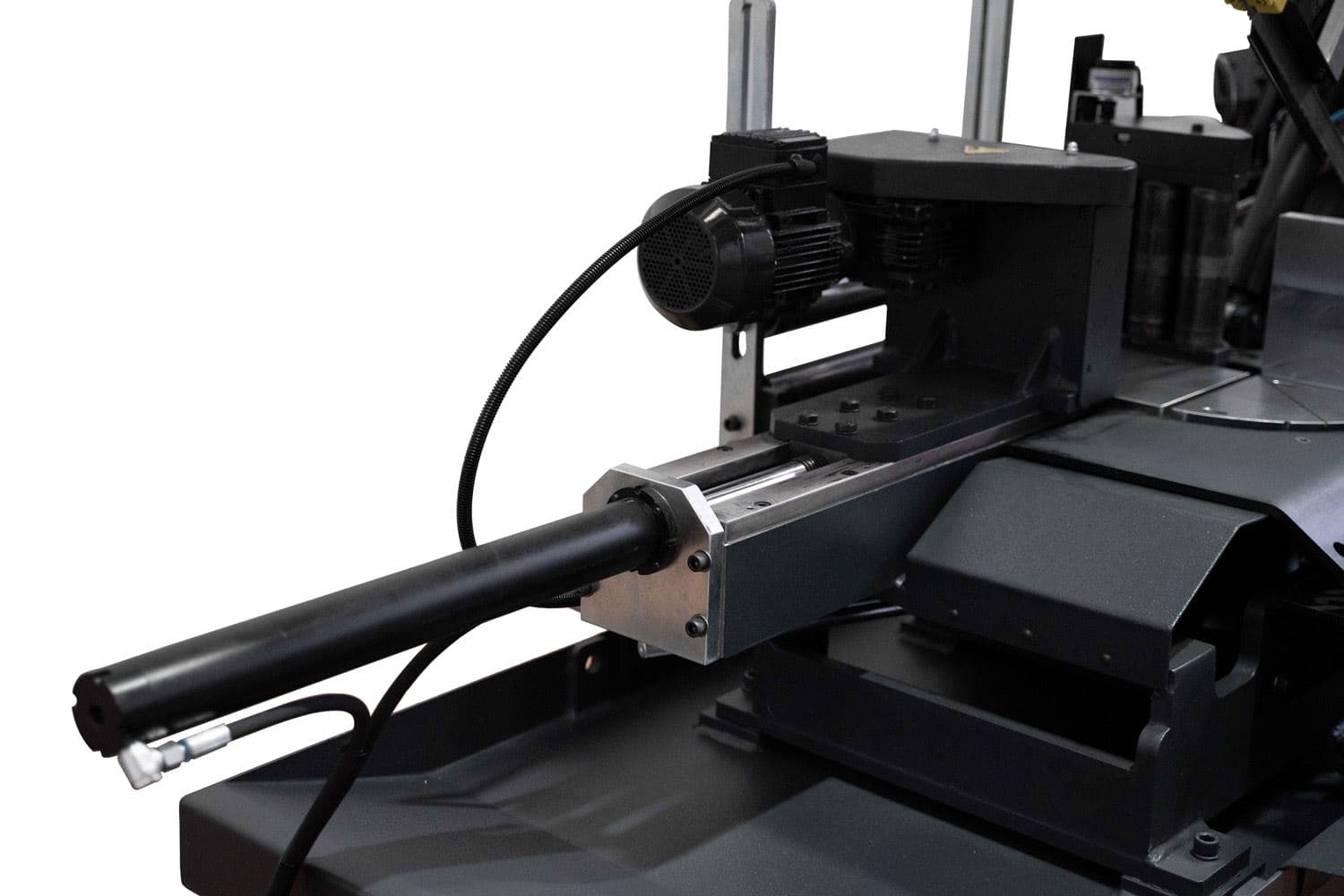

Hydraulıc Vıce
Hydromechnic Blade Tension
Security Switch
Inverter
Control Panel
Mechanic Top Clamping

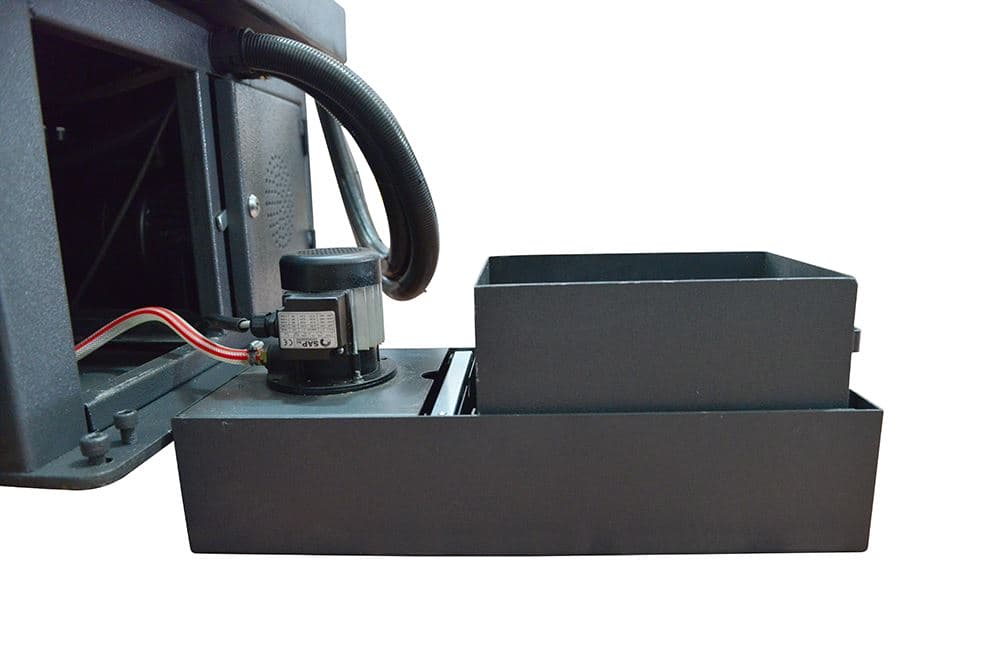

Coolant Pump
Height Adjustment Switch
Saw Blade 34
