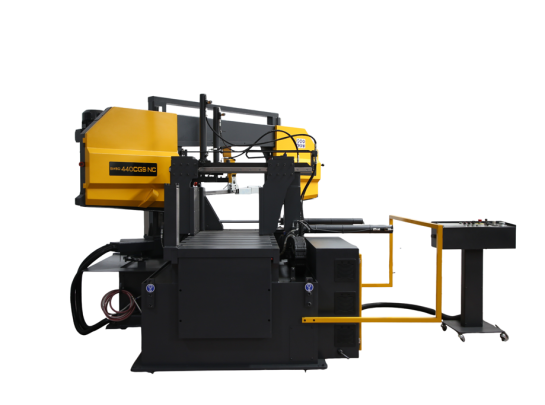

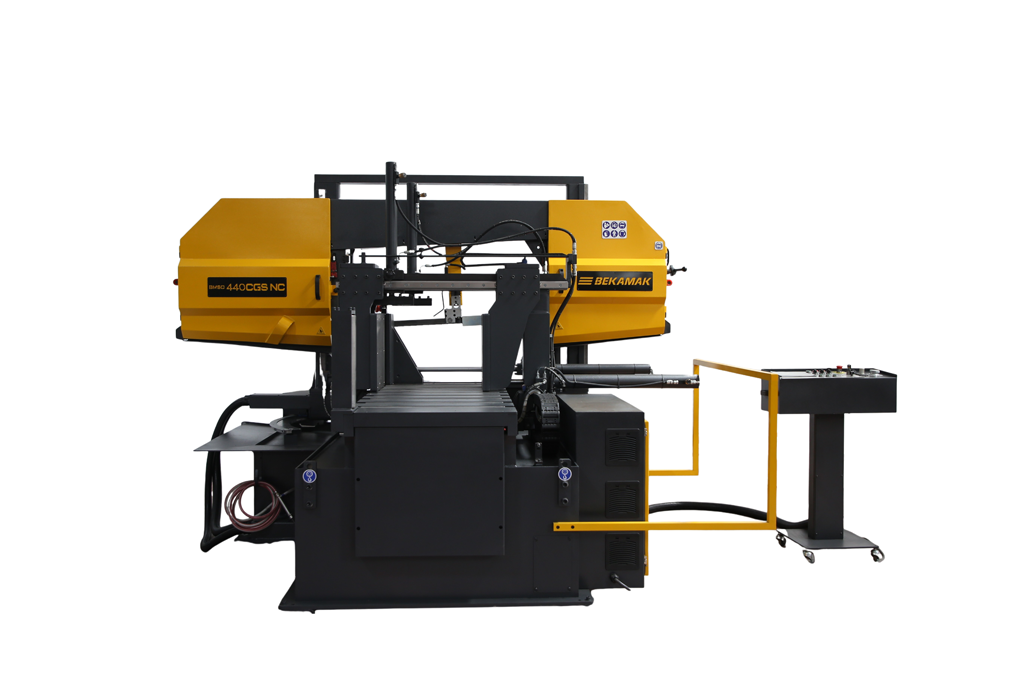

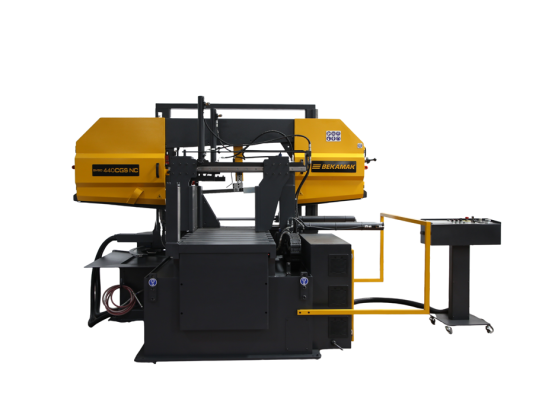

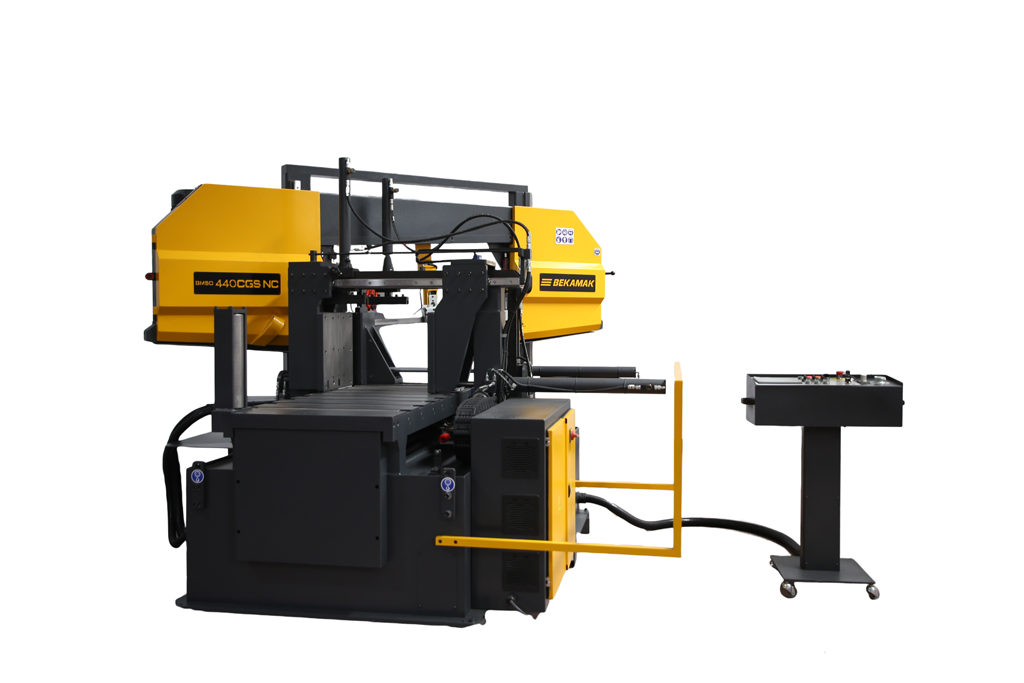

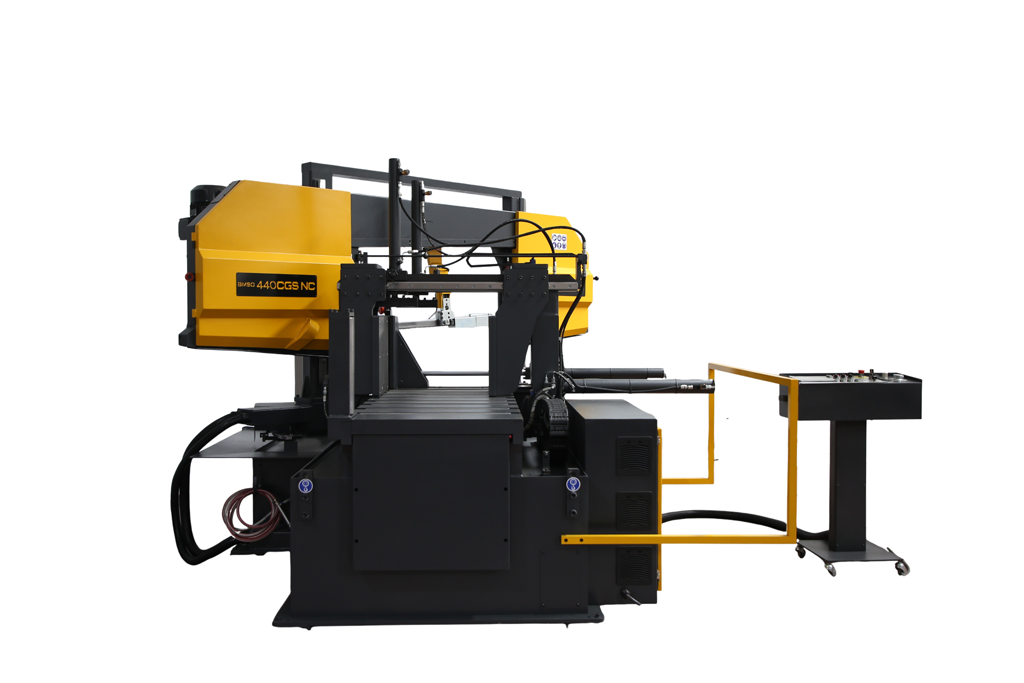

BMSO-440CGS NC
Optional Features
Product Description
CGS model is a fully automatic machine with servo feeding and it is the ideal model for mass production and bundle cutting of solid material, tube and profile. Angular cutting is available between 0-60 degrees. The servo drive system can reduce the cutting toleraances to zero error. Servo feeding system with ball screw reducescutting tolerances to zero error margin. Omron brand user friendliy color touch screen PLC control panel allows to save 30 different cutting programs that eache can have 50 cutting steps. Hydraulic top clamping and hexagonal vices are also available for bundle cutting.
Technical Details
| PARAMETER | UNIT | UNIT |
|---|---|---|
| Round Cutting Capacity | mm | 450 |
| Flat Cutting Capacity | mm | 610 x 425 |
| Square Cutting Capacity | mm | 425 |
| +30° Round Cutting Capacity | mm | 450 |
| +30° Flat Cutting Capacity | mm | 560 x 425 |
| +30° Square Cutting Capacity | mm | 425 |
| +45° Round Cutting Capacity | mm | 430 |
| +45° Flat Cutting Capacity | mm | 430 x 425 |
| +45° Square Cutting Capacity | mm | 425 |
| +60° Round Cutting Capacity | mm | 320 |
| +60° Flat Cutting Capacity | mm | 260 x 425 |
| +60° Square Cutting Capacity | mm | 290 |

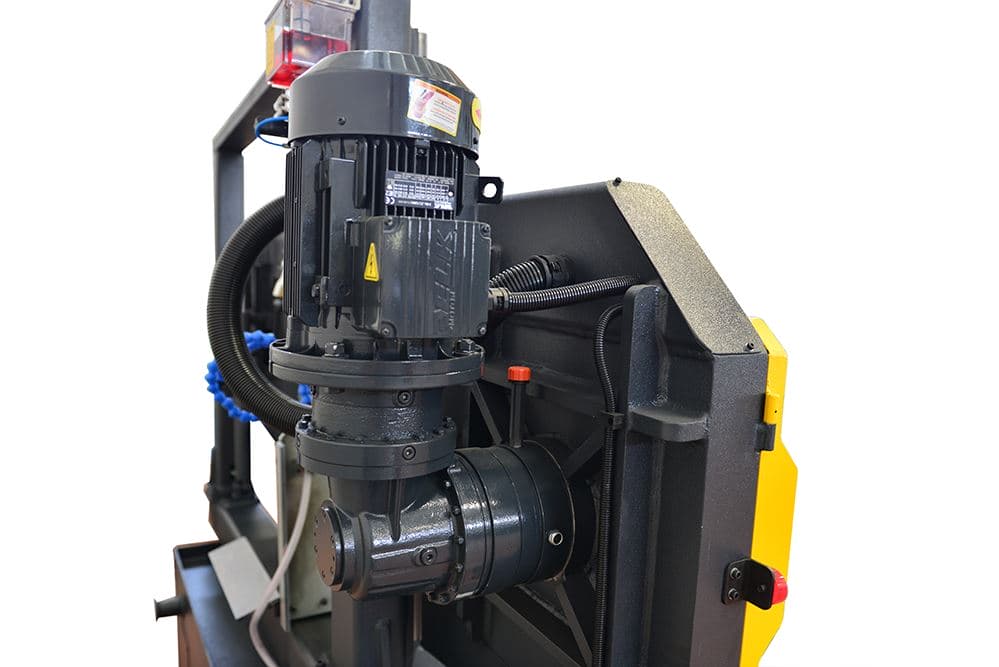

| Main Drive Motor | kW | 4 |
| Hydraulic Motor | kW | 1,1 |
| Coolant Pump | kW | 0,12 |
| Servo Engine | kW | 1,5 |
| Cutting Speeds | m/min. | 20 - 100 |
| Band Dimensions | mm | 5400x41x1,3 |
| Working Height | mm | 807,50 |
| Weight | kg | 3600 |
| Length | mm | 2850 |
| Width | mm | 2350 |
| Height | mm | 2000 |
