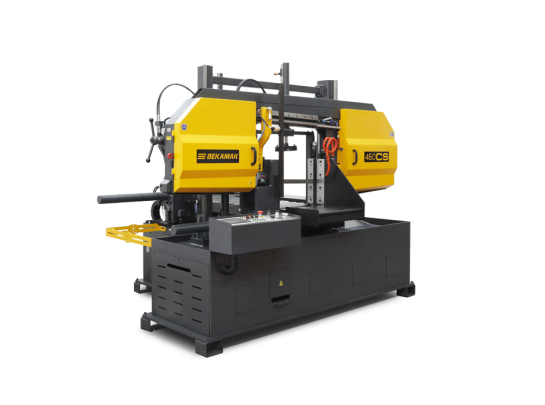

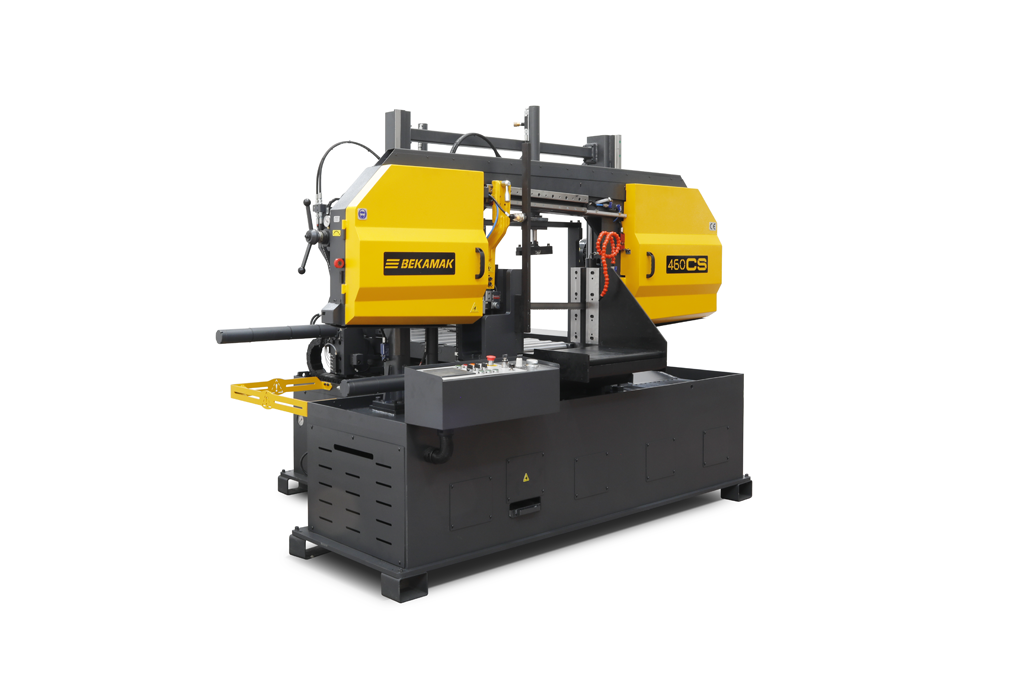

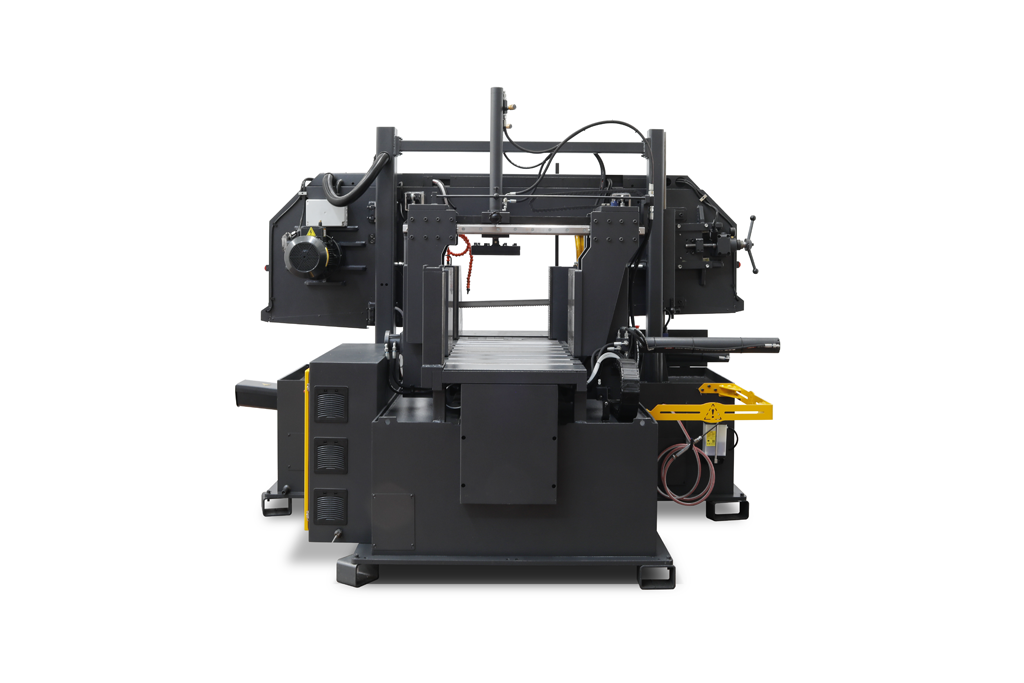

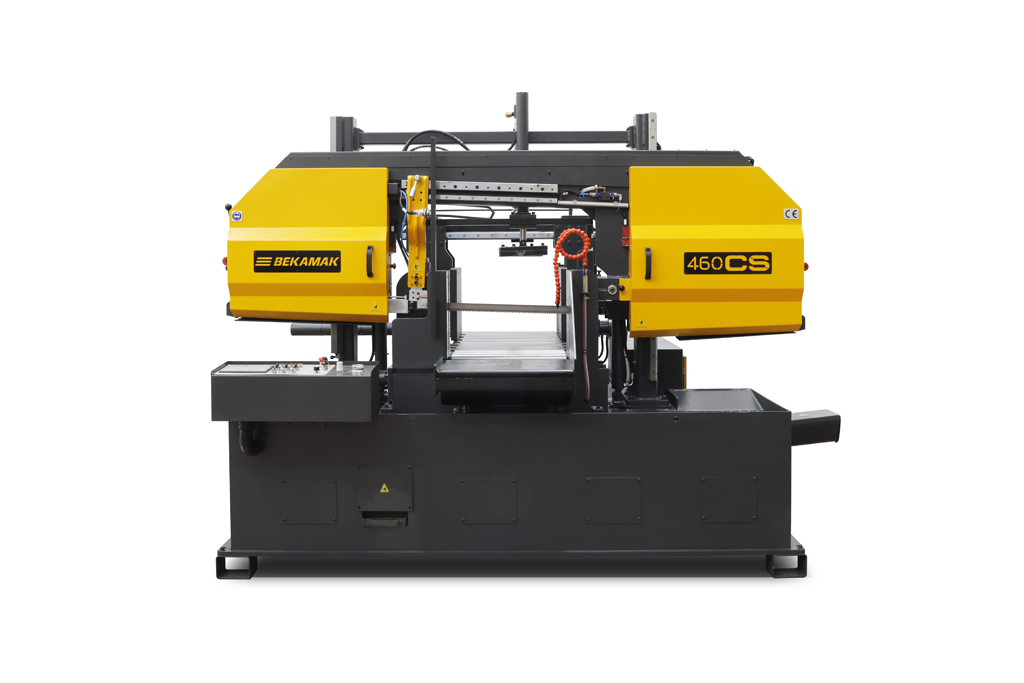

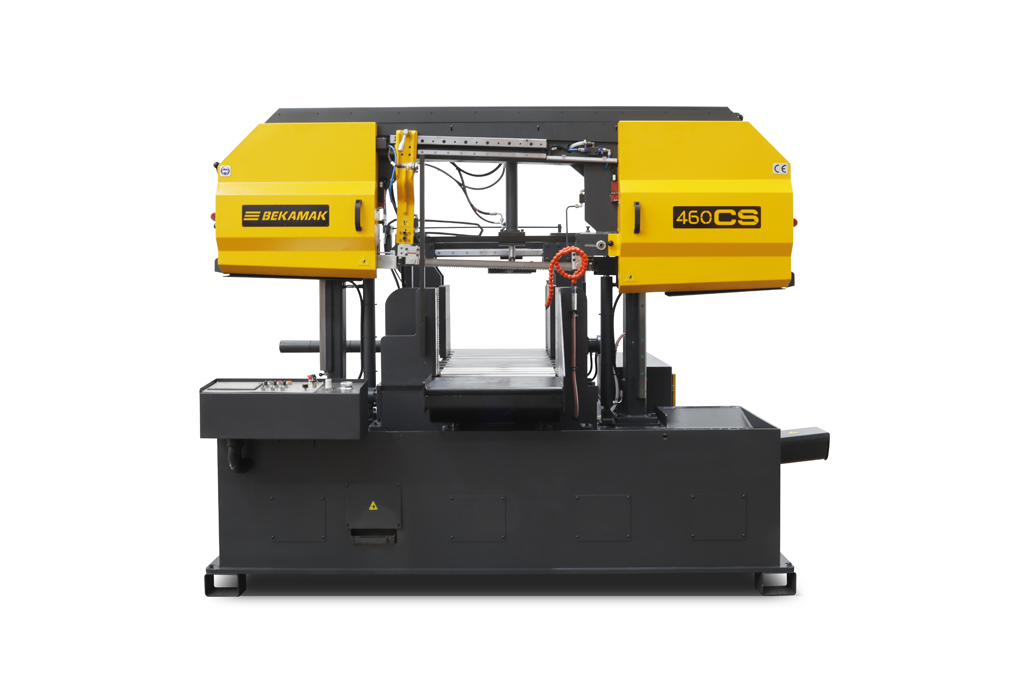

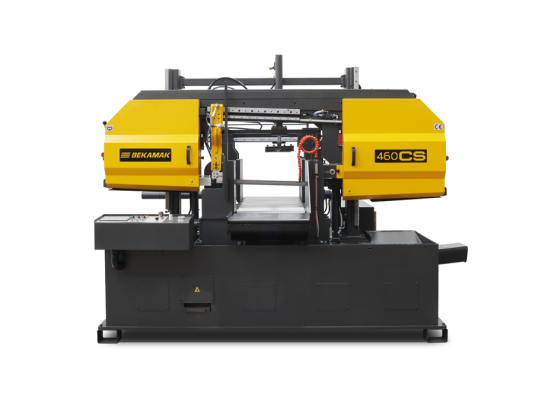

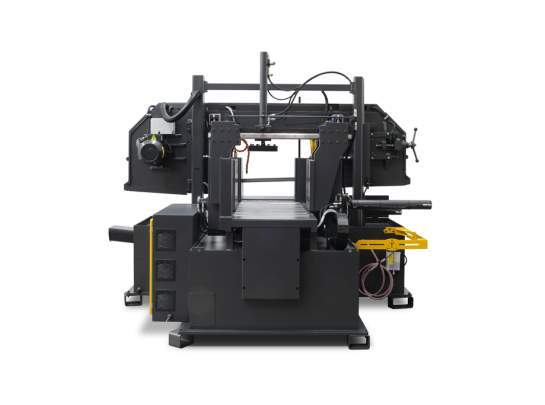

BMSO-460CS
The new CS series is designed to maximize our customers' production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding system.
CHARACTERISTICS
-User friendly Omron touch screen.
- Ability to save up to 50 different cutting lenght steps in 30 different programs.
-Servo feeding with 700mm stroke. 9.999mm multiple stroke.
-Linear way minimizes vibration.
-Chip conveyor.
-Planatery Gearbox with high efficiency.
OPTIONALS
-Hyrdaulic blade tension
-Hexagonal vices for bundle tube cutting.
-Hydraulic top clamping.
-Microspray cooling system.
|
|||||||||||
| Main Drive Motor | 4 kW | ||||||||||
| Hydraulic Motor | 2,2 kW | ||||||||||
| Coolant Pump | 0,12 kW | ||||||||||
| Feeder Servo Motor | 1,5 kW | ||||||||||
| Chip Conveyor Motor | 0,25 kW | ||||||||||
| Blade Speed | 15 - 120 m/min | ||||||||||
| Blade Dimensions | 5750x41x1,3 mm | ||||||||||
| Working Height | 826.5 mm | ||||||||||
| Length | 3000 mm | ||||||||||
| Width | 2150 mm | ||||||||||
| Height | 2100 mm | ||||||||||
| Weight | 3250 kg | ||||||||||
