BMSO-570XS CNC ENCLOSED
Optional Features
- 15 Kw Main Motor
- Tilt Adjustment Lever
- Hydraulic Top Clamping
- Microspray Device
- Hexagonal Vise
Standard Features
- Inverter
- Security Switch
- Saw Blade 54
- Lineer Way
- Hydraulic Vise Cylinder
- Cutting Width Adjustment Arm
- Deflection Control
- Automatic Lubrication
- Hydraulic Carbide Bearings
- Motorized Saw Blade Brash
- Optical Rapid Approach

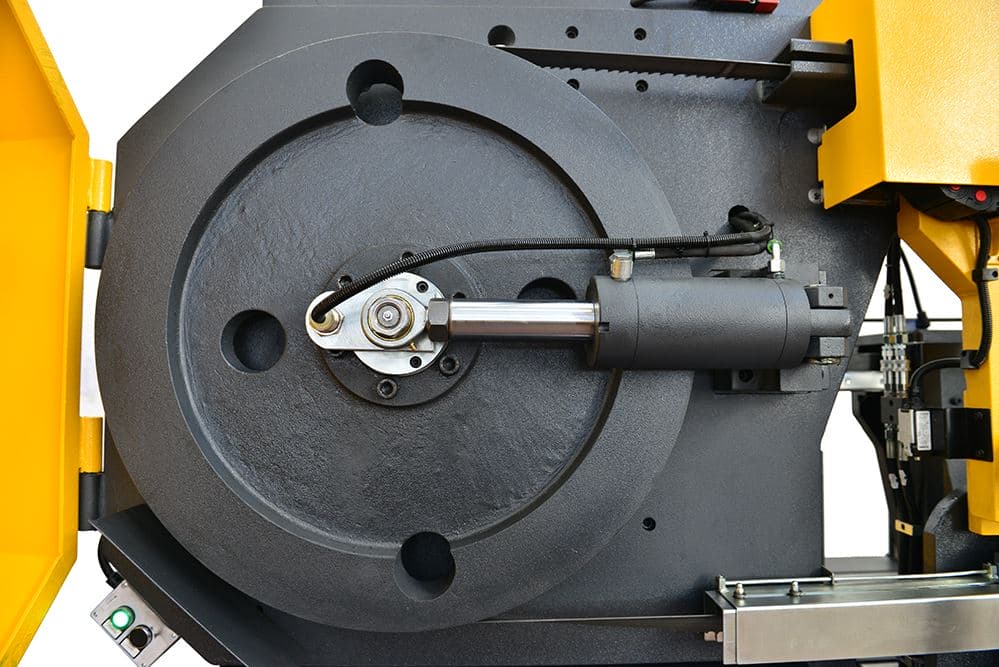

- Hydraulic Blade Tension and Stud Control
- Lever Type Control Panel
- Heavy Duty Gearbox
- Led Lamp
Product Description
THE ULTIMATE BANDSAW MACHINE
The new Enclosed BMSO 570XS is designed to maximize our customers' production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding and cutting system. Automatic controls and sensors maximazes performans/cost ratio and extends lifetime of blade up to 50% longer.
CHARACTERISTICS
- Smart cut and user friendly touch screen with Omron CNC cutting program.
- Ability to save up to 50 different cutting lenght steps in 100 different programs.
-Cutting parameters are CNC controlled for an optimal processing of workpiece.
-Manual cutting parameters input.
-Servo feeding with 700mm stroke.
-Guide arm travels on linear guide way and moves in coordination with the moveable vise jaw.
-Hydrulic actuated carbide blade guides.
-Idle Wheel motion detector and automatic deflection sensor.
-Vibration free cutting with 3 linear way.

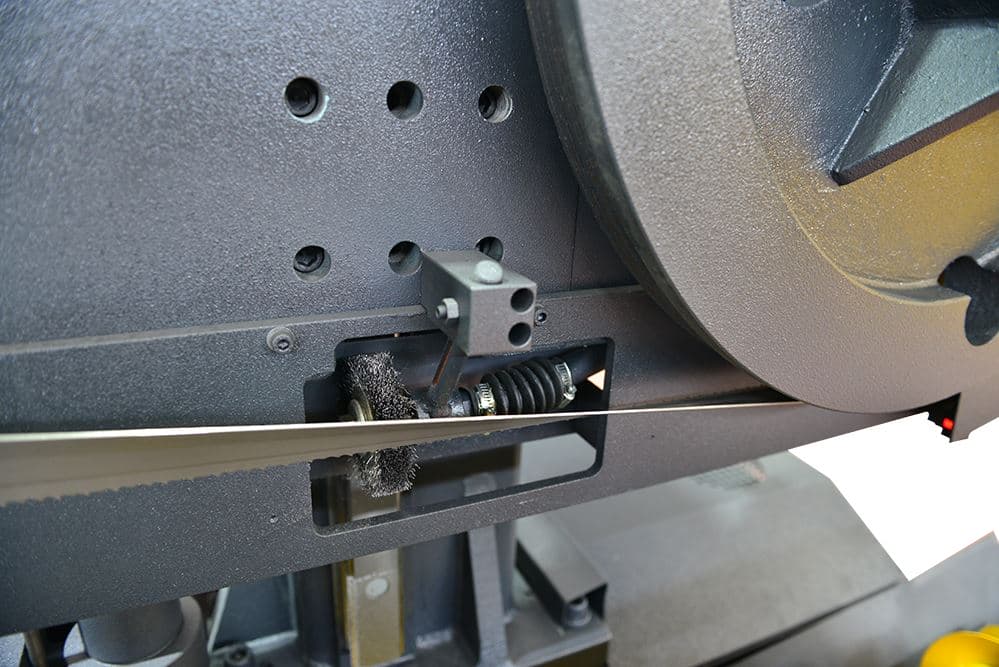

-Motorized swarf brush.
-Planatery Gearbox.
Technical Details
| PARAMETER | UNIT | UNIT |
|---|---|---|
| Round Cutting Capacity | mm | 570 |
| Flat Cutting Capacity | mm | 600 x 570 |
| Square Cutting Capacity | mm | 570 |
| Main Drive Motor | kW | 7,5 |
| Hydraulic Motor | kW | 2,2 |
| Coolant Pump | kW | 0,12 |
| Chip Conveyor Motoru | kW | 0,25 |
| Servo motor of the power supply | kW | 2 |
| Bow Lifting Motor | kW | 1,5 |
| Cutting Speeds | m/min. | 20 - 100 |
| Band Dimensions | mm | 7400x54x1,6 |
| Working Height | mm | 805 |
| Weight | kg | 5250 |
| Length | mm | 3500 |
| Width | mm | 2000 |
| Height | mm | 2700 |
