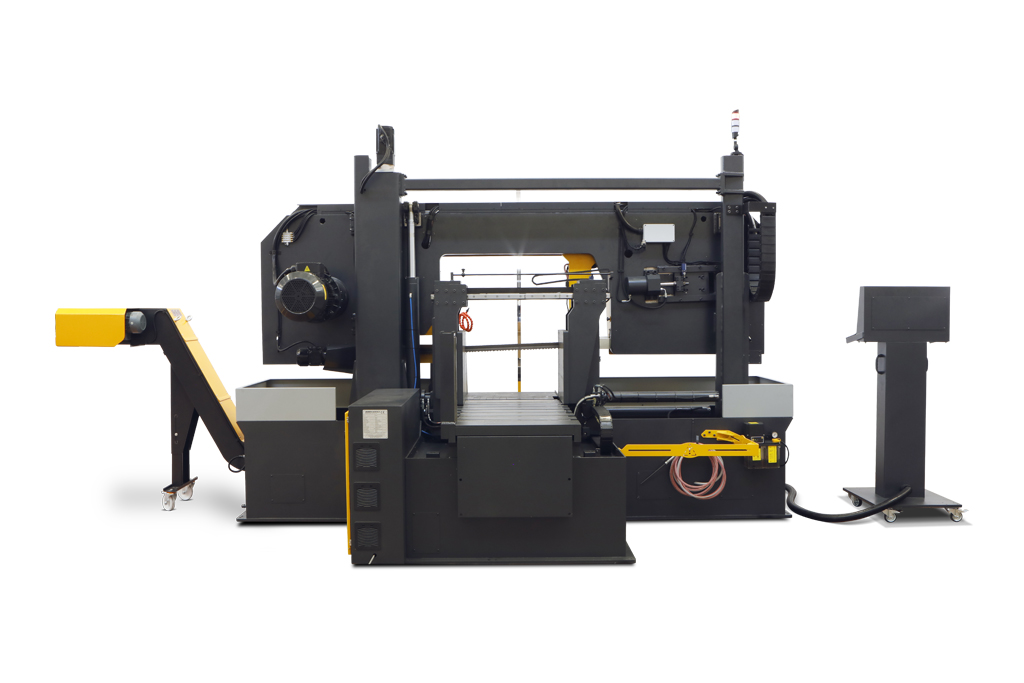

BMSO-660XS


THE ULTIMATE BANDSAW MACHINE The new BMSO 660XS is designed to maximize our customers' production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding and cutting system. Automatic controls and sensors maximazes performans/cost ratio and extends lifetime of blade up to 50% longer. CHARACTERISTICS - Smart cut and user friendly touch screen with Omron CNC cutting program. - Ability to save up to 50 different cutting lenght steps in 100 different programs. -Cutting parameters are CNC controlled for an optimal processing of workpiece. -Manual cutting parameters input. -Servo feeding with 700mm stroke. -Guide arm travels on linear guide way and moves in coordination with the moveable vise jaw. -Hydrulic actuated carbide blade guides. -Idle Wheel motion detector and automatic deflection sensor. -Vibration free cutting with 3 linear way. -Motorized swarf brush. -Planatery Gearbox. OPTIONALS -Hydraulic top clamping. -Microspray cooling system. -Hexagonal vices for bundle tube cutting.
Cutting Capacity 660 mm 660x660 mm 660 mm
Main Drive Motor 7,5 kW
Hydraulic Motor 2,2 kW
Coolant Pump 0,12 kW
Head Servo Motor 1,5 kW
Feeder Servo Motor 2 kW
Chip Brush Motor 0,18 kW
Blade Speed 15-120 m/min.
Blade Dimensions 7925x54x1,6 mm
Working Height 805 mm
Length 3900 mm
Width 2100 mm
Height 2770 mm
Weight 7200 kg
