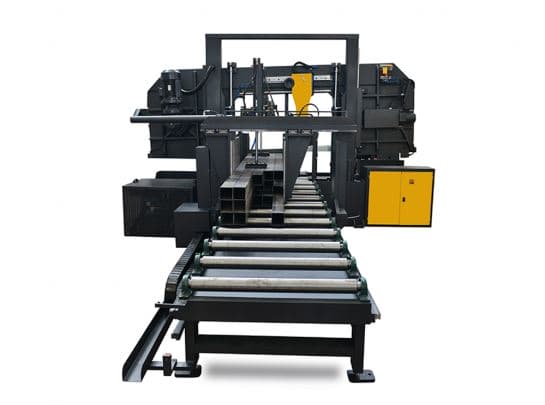

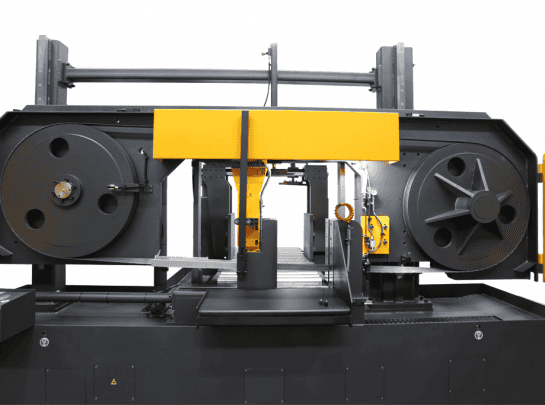

BMSO-820CS
The new CS series is designed to maximize our customers' production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding system.
CHARACTERISTICS
-User friendly Omron touch screen.
- Ability to save up to 50 different cutting lenght steps in 30 different programs.
-Servo feeding with 700mm stroke. 9.999mm multiple stroke.
-Two linear way minimizes vibration.
-Chip conveyor.
-Planatery Gearbox with high efficiency.
-Hyrdaulic blade tension
OPTIONALS
-Hexagonal vices for bundle tube cutting.
-Hydraulic top clamping.
-Microspray cooling system.
-Automatic deflection sensor.
|
|||||||||||
| Main Drive Motor | 7,5 kW | ||||||||||
| Hydraulic Motor | 2,2 kW | ||||||||||
| Feeder Servo Motor | 2 kW | ||||||||||
| Coolant Pump | 0,12 kW | ||||||||||
| Chip Conveyor Motor | 0,25 kW | ||||||||||
| Blade Speed | 15-120 m/min. | ||||||||||
| Blade Dimensions | 9500x54/67x1,6 mm | ||||||||||
| Working Height | 859 mm | ||||||||||
| Length | 4500 mm | ||||||||||
| Width | 2650 mm | ||||||||||
| Height | 3100 mm | ||||||||||
| Weight | 9650 Kg | ||||||||||
