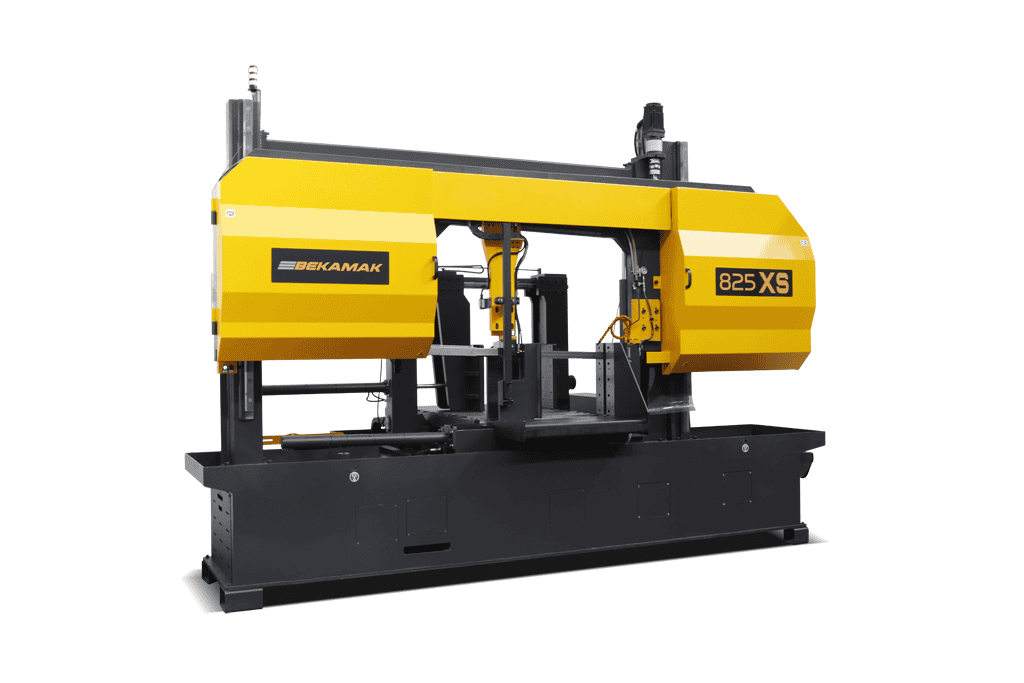

BMSO-825XS


THE ULTIMATE BANDSAW MACHINE The new BMSO 825XS is designed to maximize our customers' production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding and cutting system. Automatic controls and sensors maximazes performans/cost ratio and extends lifetime of blade up to 50% longer. CHARACTERISTICS - Smart cut and user friendly touch screen with Omron CNC cutting program. - Ability to save up to 50 different cutting lenght steps in 100 different programs. -Cutting parameters are CNC controlled for an optimal processing of workpiece. -Manual cutting parameters input. -Servo feeding with 700mm stroke. -Guide arm travels on linear guide way and moves in coordination with the moveable vise jaw. -Hydrulic actuated carbide blade guides. -Idle Wheel motion detector and automatic deflection sensor. -Vibration free cutting with 3 linear way. -Motorized swarf brush. -Planatery Gearbox. OPTIONALS -Hydraulic top clamping. -Microspray cooling system. -Hexagonal vices for bundle tube cutting. -15 kW motor
Cutting Capacity 825 mm 825 x 850 mm 825 mm
Main Drive Motor 15 kW
Hydraulic Motor 2,2 kW
Coolant Pump 0,12 kW
Chip Conveyor Motor 0,25 kW
Feeder Servo Motor 2 kW
Head Servo Motor 2 kW
Chip Brush Motor 0,18 kW
Blade Speed 15-120 m/min.
Blade Dimensions 9500x67x1,6 mm
Working Height 859 mm
Length 4500 mm
Width 2650 mm
Height 3100 mm
Weight 10000 kg
