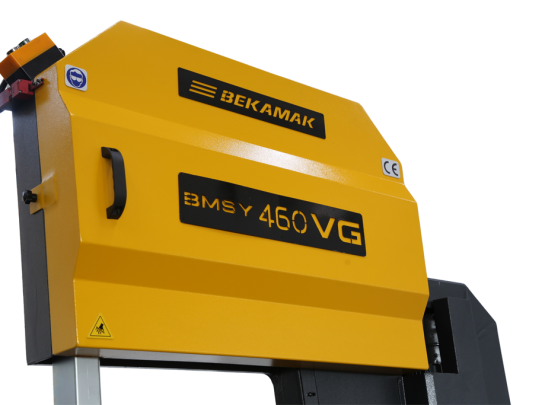

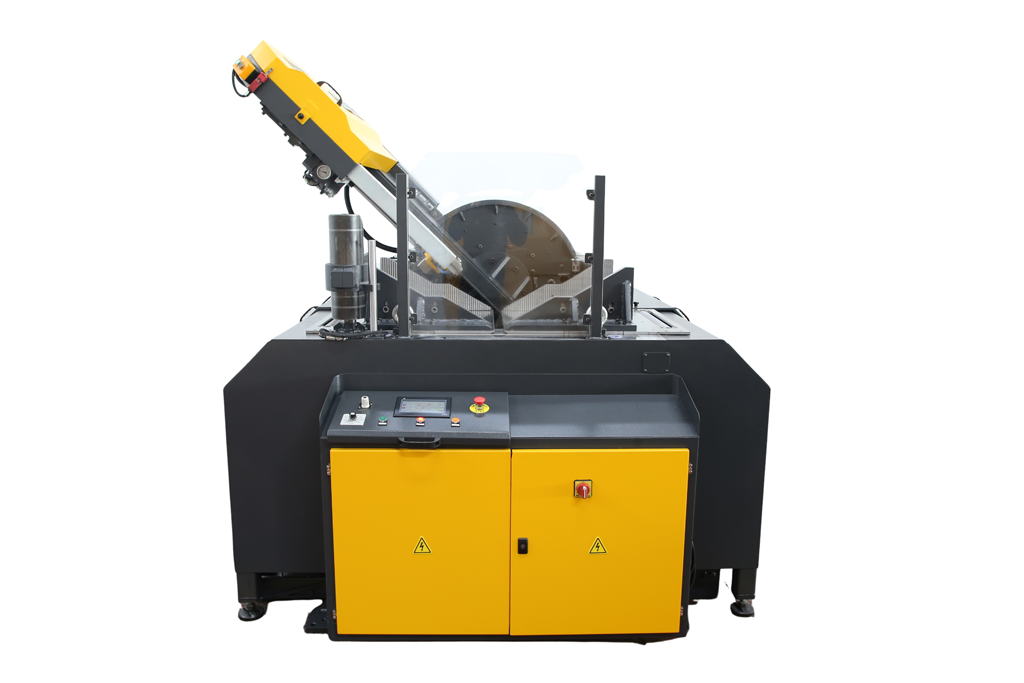

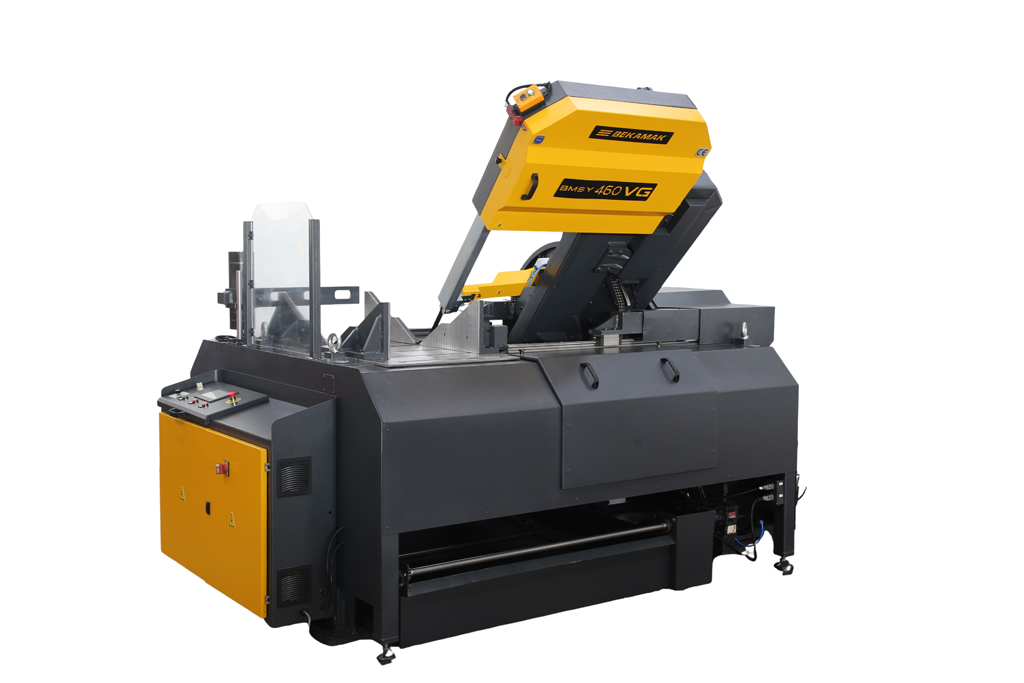

BMSY-460VG

BMSY-460VG

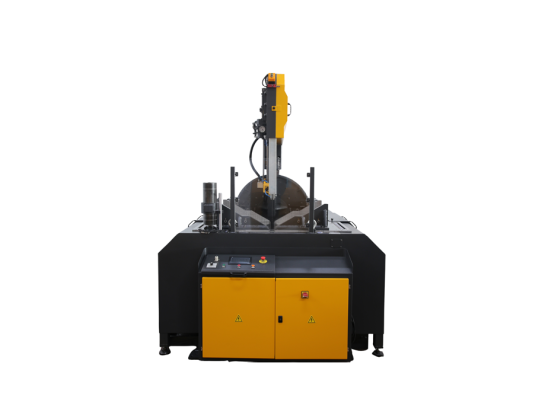

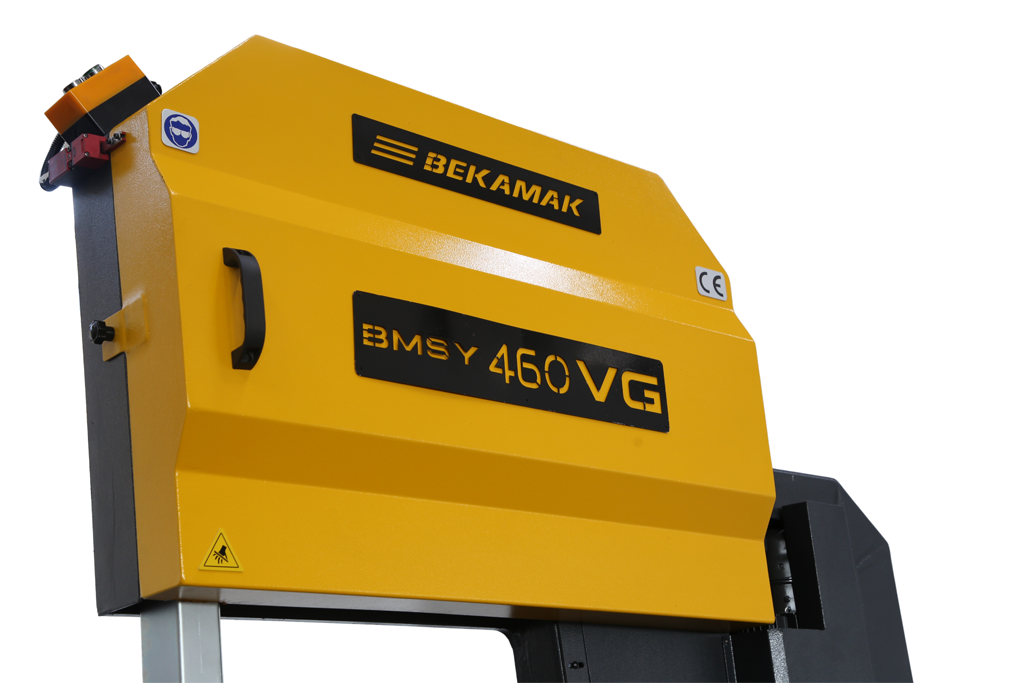

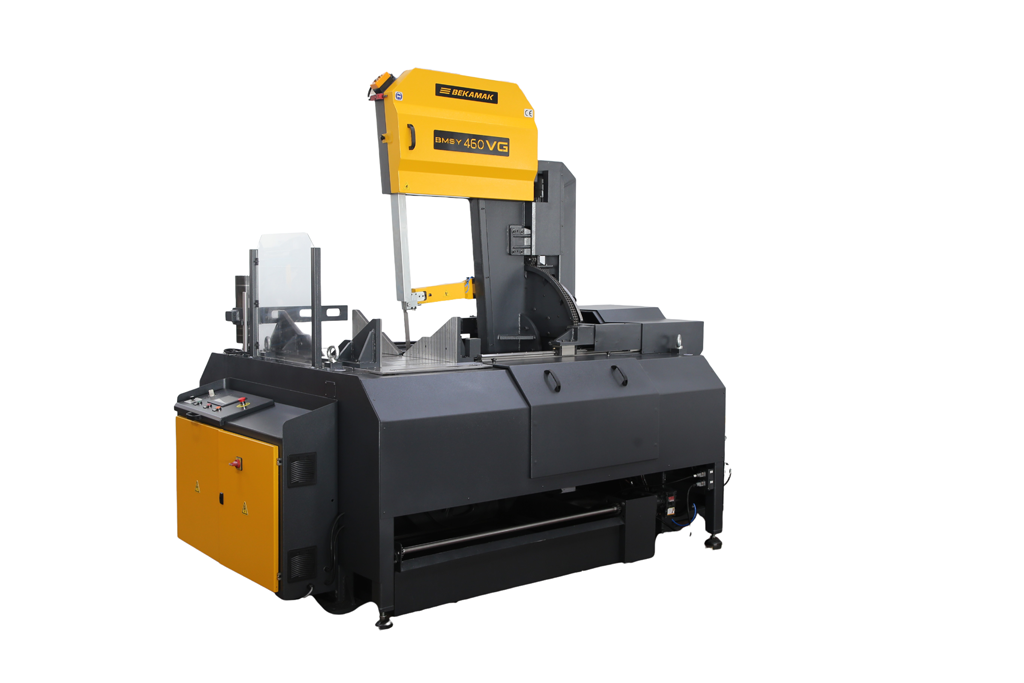

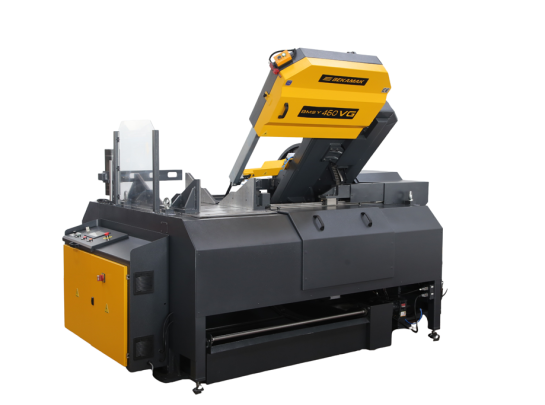

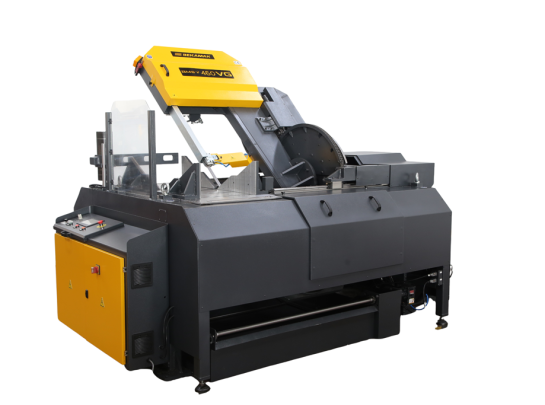

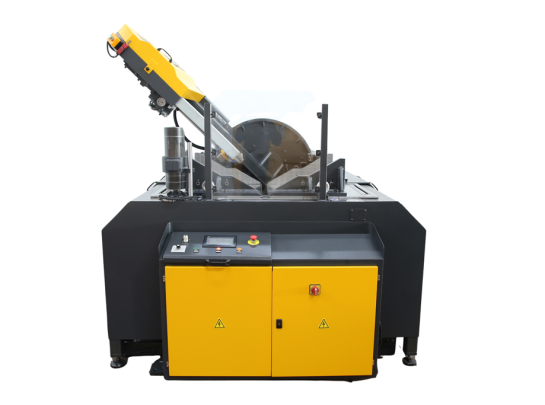

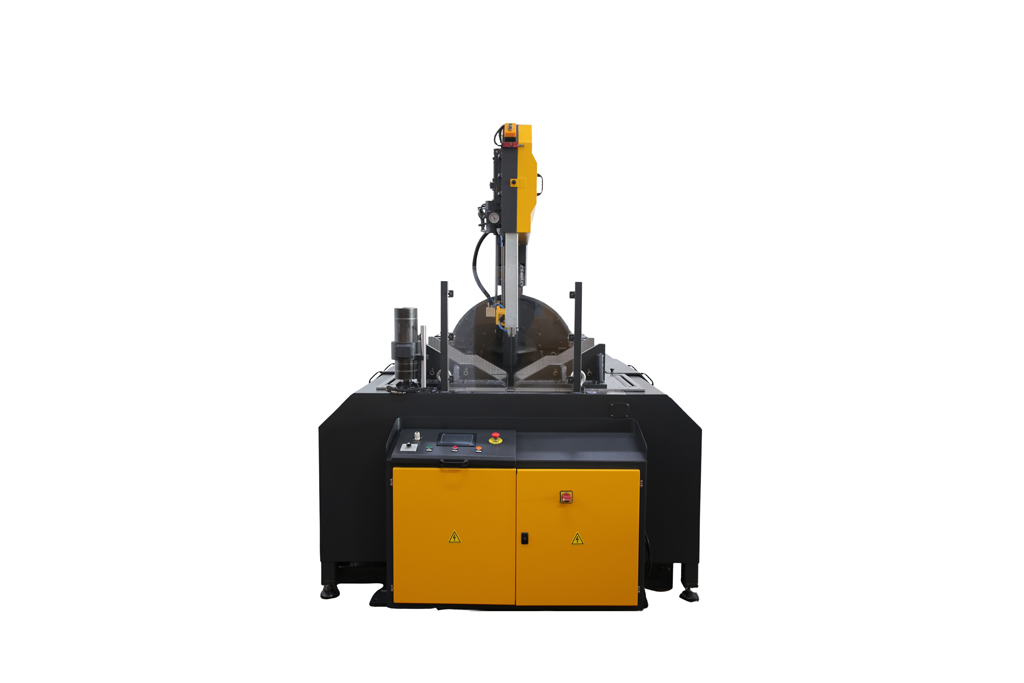

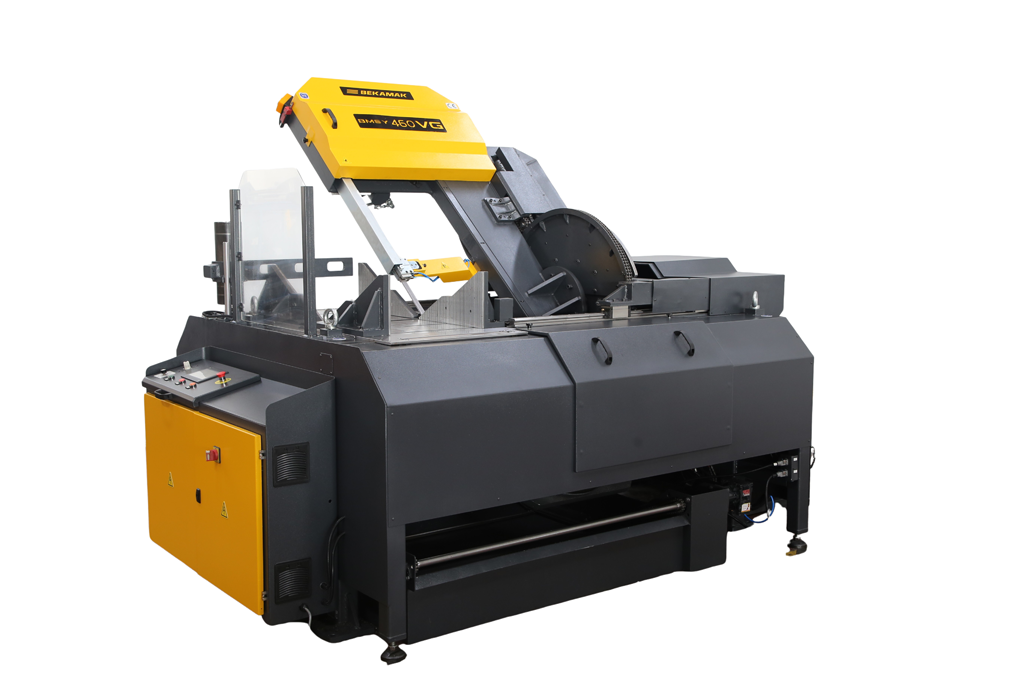

Double sided miter semi automatic bandsaw machine
Cutting Capacity 0° 460 mm 710 x 460 mm 460 mm
+30° 460 mm 590 x 460 mm 460 mm
+45° 460 mm 460 x 460 mm 460 mm
+60° 275 mm 460 x 275 mm 275 mm
-30° 460 mm 590 x 460 mm 460 mm
-45° 460 mm 460 x 460 mm 460 mm
-60° 325 mm 325 x 460 mm 325 mm
Main Drive Motor 4 kW
Hydraulic Motor 2,2 kW
Coolant Pump 0,2 kW
Rotating Motor 0,37 kW
Chip Conveyor Motor 0,25 kW
Blade Speed 15 - 120 m/min.
Blade Dimensions 6000x34x1,1 mm
Working Height 1160 mm
Weight 2800 kg
Lenght 3250 mm
Width 2150 mm
Height 2800 mm
