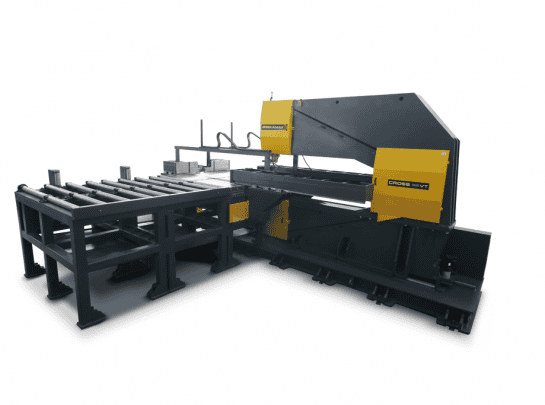

CROSS-0626VT


The fully automated, high-capacity plate bandsaw is equipped with a vertical saw blade that moves in a parallel direction, allowing precise cutting of billets, plates, and various flat materials. It is specifically designed to handle challenging materials like tool steels, titanium, Hastelloy, and Inconel. The automatic feed mechanism ensures accurate positioning of blocks and plates for optimal cutting results.
Cutting Capacity 600 x 2600 mm
Clamping Range 400 x 2600 mm
Shortest cut - off length 20 mm
Shortest cut - off length in aut 30 mm
Main Drive Motor 7,5 kW
Hydraulic Motor 2,2 kW
Coolant Pump 1,1 kW
Cutting Speeds 15-75 m/sn
Band Dimension 12035 x 54 x 1,6 mm
Working Height 1876 mm
Weight 33500 kg
Lenght 5920 mm
Width 9972 mm
Height 3870 mm
